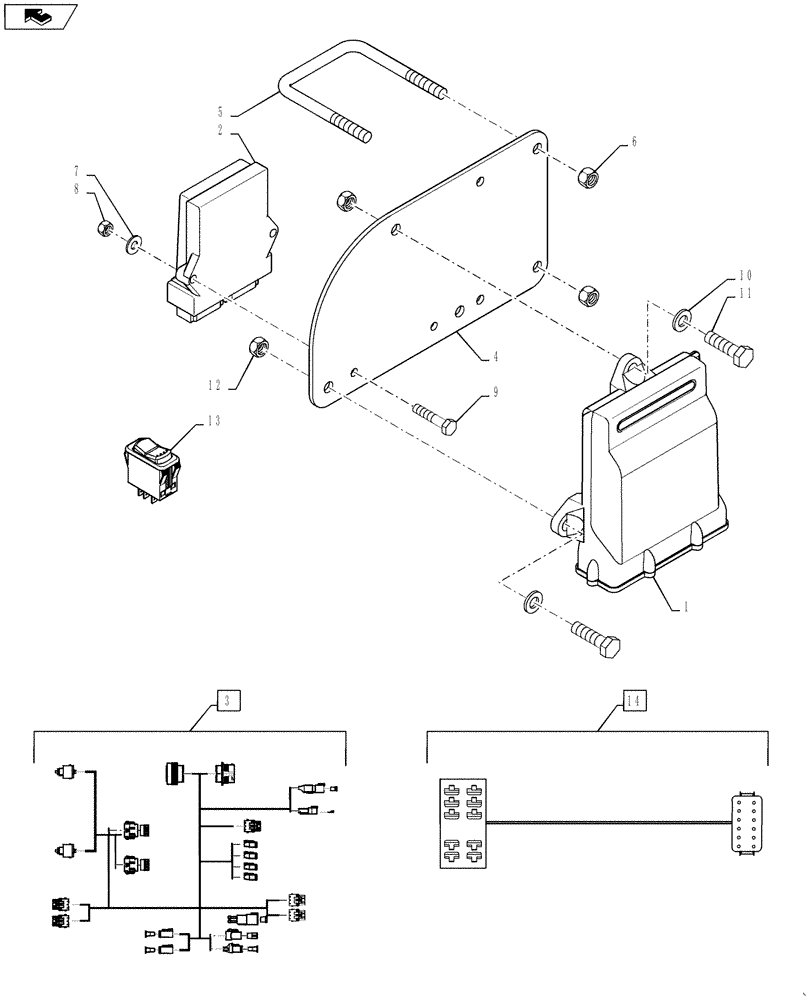

Запчасти Case IH 4420 (11-102) - PACKAGE, NODES/HARNESSES, EZ-FOLD, 120, BOOM - AUTOFOLD Options

1

47774596

CONTROL BLOCK

NODE, AUTOFOLD, 120'

1шт.

1

47774596R

REMAN ELECT CONTROL

NODE, AUTOFOLD, 120'

1шт.

1

47774596C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

84138963

CONTROL BLOCK

NODE, HYD INPUT, 120'

1шт.

84138963R

REMAN ELECT CONTROL

4420 (8/06-9/11)

1шт.

84138963C

CORE-ELECTRONIC CONT

Return Number

1шт.

3

84138914

HARNESS

AUTOFOLD, 120' BOOM

1шт.

4

87484395

MOUNT

NODES

1шт.

5

BN313492

U-BOLT

5/16 X 2.56 INSID

2шт.

6

87343959

NUT,5/16" - 18, GR B, DOR

4шт.

7

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

2шт.

8

353308

NUT,M6 x 1.0, Cl 8

2шт.

9

86980362

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

2шт.

10

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

3шт.

11

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

3шт.

12

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

3шт.

13

87397313

SWITCH

One Touch Fold

1шт.

14

87397319

WIRE HARNESS

One Touch Fold

1шт.
