Запчасти Case IH 4420 (11-096[03]) - ACCUBOOM KIT, SN YAT028471 AND AFTER Options

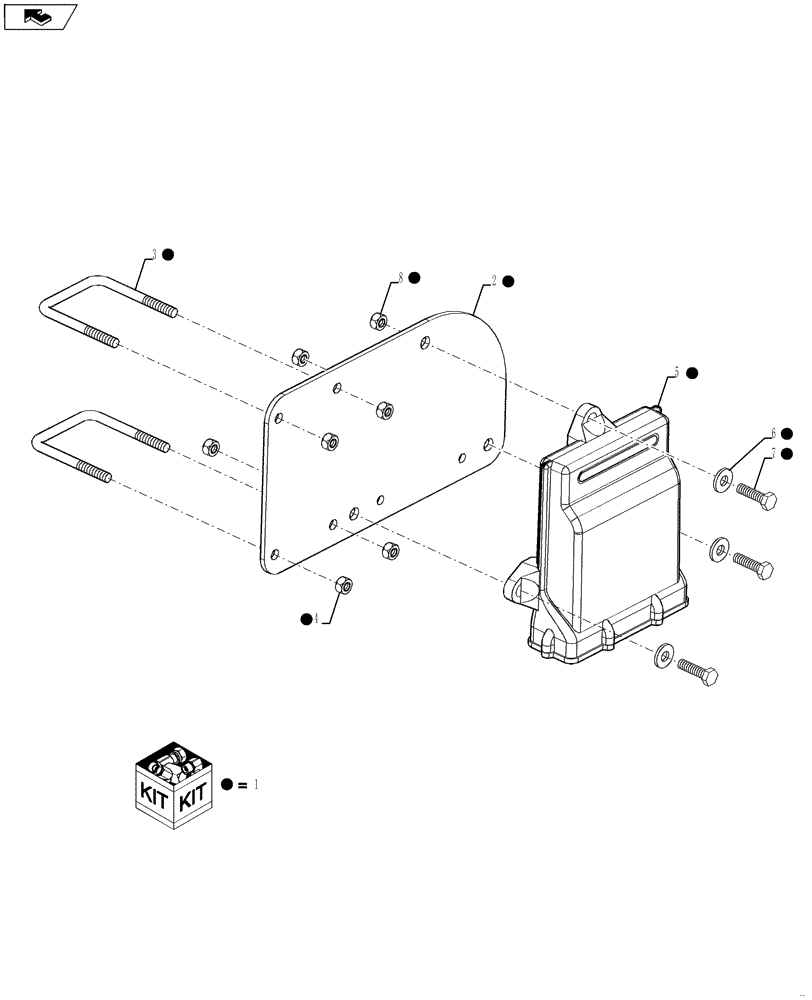

Схема запчастей Case IH 4420 - (11-096[03]) - ACCUBOOM KIT, SN YAT028471 AND AFTER Options
1
2
1
1
3
5
1
6
1
1
4
home
1
1
7
1
8

Артикул

Название

Примечание

Количество

1

84366890

KIT

Accuboom Kit, Rear Mount, Includes Ref 2 thru 9

1шт.

2

87484395

MOUNT

Nodes

1шт.

3

BN313492

U-BOLT

5/16 X 2.56 ID

2шт.

4

87343959

NUT,5/16" - 18, GR B, DOR

4шт.

5

87643472

CONTROL UNIT

Accuboom Node

1шт.

87643472R

REMAN ELECT CONTROL

4420 SN YAT028471 AND AFTER (8/06-9/11)

1шт.

87643472C

CORE-ELECTRONIC CONT

Return Number

1шт.

6

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

3шт.

7

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

3шт.

8

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

3шт.

9

84366893

SERVICE KIT

Accuboom, Harness And Manual Kit, Includes Ref 10 and 11

1шт.

10

84366896

HARNESS

Accuboom Rear Extension, Not Shown

1шт.

11

84366900

HARNESS

Fence Row Adaptor, Not Shown

1шт.

Выбрано товаров: 13
