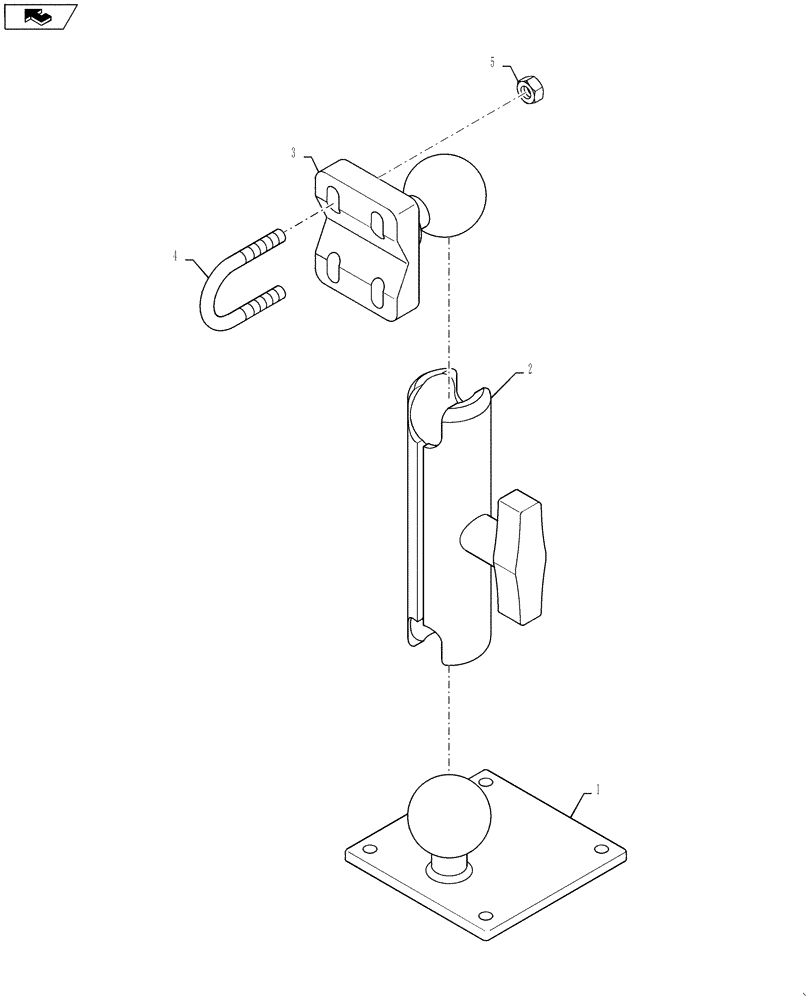

Запчасти Case IH 4420 (11-093) - MOUNT, COLOR DISPLAY ARM Options

1

87386398

SUPPORTING ARM

Ram Square Mount, 75 x 75

1шт.

2

87284257

ARM

ARM, DOUBLE SOCKET, 1.5

1шт.

3

87284259

PLATE

Base Plate, Double U-bolt

1шт.

4

435430A1

U-BOLT

ur 1/4" x 1" w x 1 3/4" d 1" thread

2шт.

5

7770

NUT,Hex, 1/4 - 20, Cl 5

7шт.
