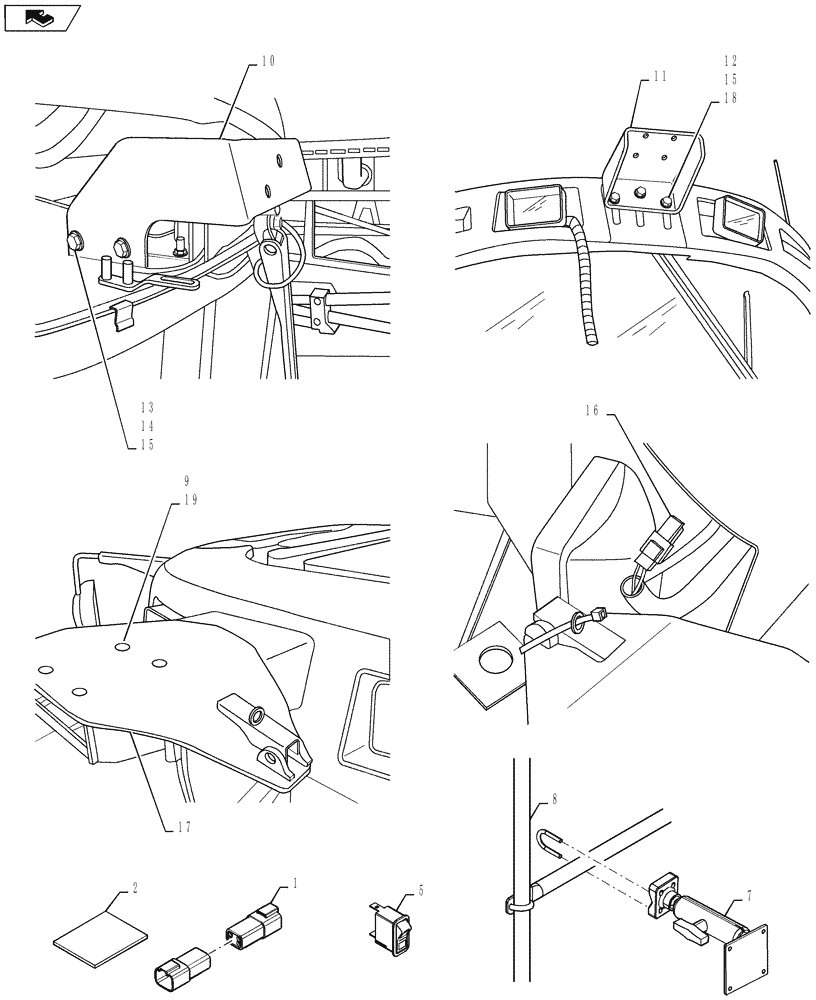

Запчасти Case IH 4420 (11-092) - ACCUGUIDE ELECTRICAL GROUP, CAB Options

1

87646096

SWITCH ASSY

Remote, With Pigtail Connector (auto guidance end of row engage)

1шт.

2

87646099

FASTENER

dual lock

2шт.

3

BN315870

SEALANT

11 OZ BLACK G-FLEX, NOT SHOWN

1шт.

4

84154702

HARNESS

Accuguide, 4WD Cab

1шт.

5

87711789

AUTO GUIDANCE DISENG

NOT SHOWN

1шт.

6

87566059

HARNESS

DISPLAY, NOT SHOWN

1шт.

7

386857A1

MOUNTING PARTS

monitor, RH window

1шт.

8

87386396

MOUNT

Mount Color Display

1шт.

9

9991588

NUT,M8 x 1.25, Cl 8

4шт.

10

84140973

BRACKET

Antenna Mounting

1шт.

11

87304767

BRACKET

Antenna Mounting

1шт.

12

87304771

SPACER

Auto Guidance Antenna

3шт.

13

87342008

BOLT,Hex, M10 x 20mm, Cl 10.9

Hex, M10 x 20 CL10.9 DOR

4шт.

14

87344003

NUT,M10-1.5, 10, DOR

4шт.

15

87529298

WASHER,11mm ID x 21mm OD x 2mm Thk

11 x 21 x 2 mm, CST, DOR

7шт.

16

87544759

HARNESS

GPS Antenna Receiver

1шт.

17

87528080

BASE PLATE

Auto Guidance, Roof Mounting Antennas

1шт.

18

43249

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

3шт.

19

374897

SCREW,Phil Flat Hd, M8 x 1.25 x 25mm, Cl 4.8

4шт.

20

87754262

REWORK FOR AUTO GUIDANCE

1шт.
