Запчасти Case IH 4420 (01-002[01]) - PACKAGE, BENSON RADIO GROUP Cab Interior

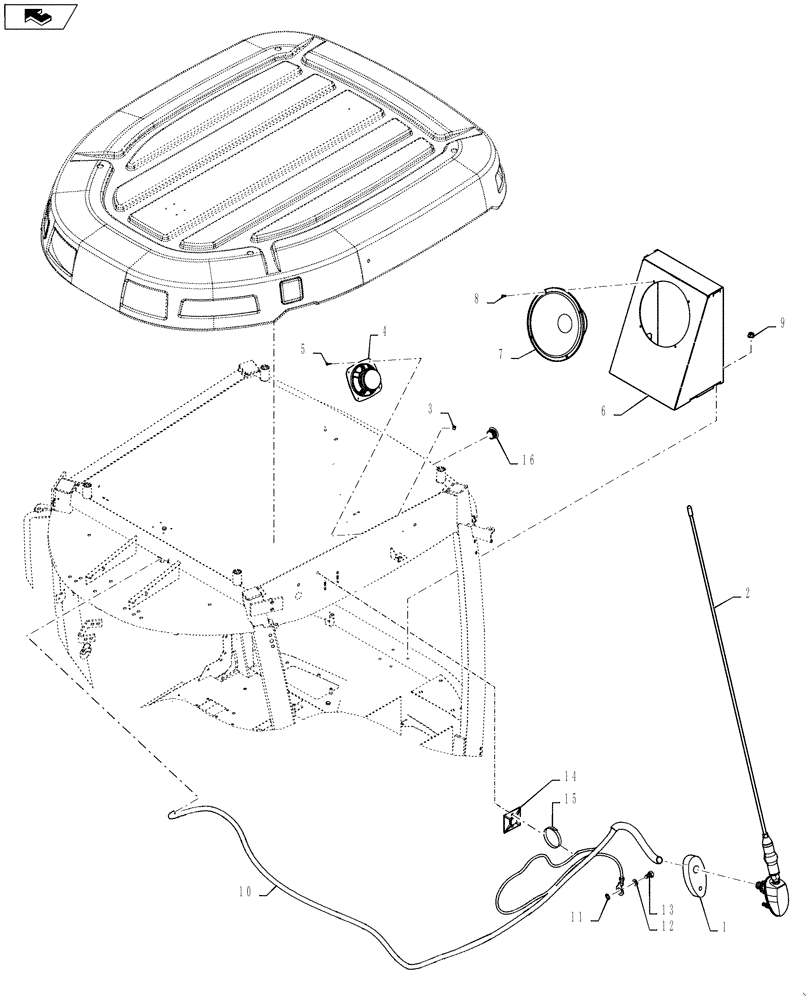

Схема запчастей Case IH 4420 - (01-002[01]) - PACKAGE, BENSON RADIO GROUP Cab Interior
13
home
4
16
9
2
12
3
7
5
6
10
8
15
1
14
11

Артикул

Название

Примечание

Количество

1

87471321

SPACER

ANTENNA

1шт.

2

87471319

ANTENNA

Assembly, Start Year: 01-OCT-08

1шт.

2a

360215A1

ANTENNA

radio, Years: -01-OCT-08

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

3

177269A1

SPRING NUT,M4.2

8шт.

4

87621241

SPEAKER

5 1/4" Coaxial

2шт.

5

1270741C1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1"

8шт.

6

87537767

HOUSING

Subwoofer, 8"

1шт.

7

87659034

SPEAKER

Subwoofer, 8"

1шт.

8

190003843141

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 16

4шт.

9

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

4шт.

10

360432A2

HARNESS

ENT. radio antenna

1шт.

11

893-11006

LOCK WASHER,Ext Tooth, M6

1шт.

12

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

13

86639137

SELF-TAP SCREW,Hex Hd, M6.3 x 13

1шт.

14

435436A1

RUBBER MOUNTING

Adhesive Backed

1шт.

15

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

1шт.

16

86625130

PLUG,Dome, 1.250" hole, Nylon

2шт.

Выбрано товаров: 18
