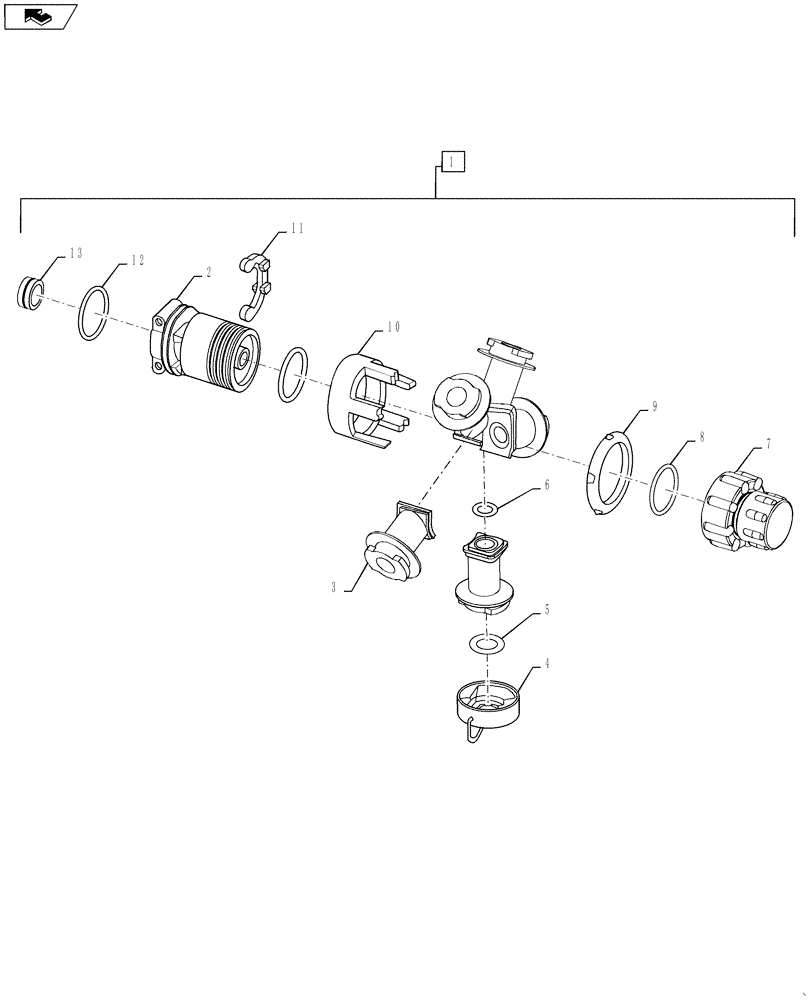

Запчасти Case IH 4420 (11-075[02]) - WILGER, 5-WAY NOZZLE Options

1

84484763

NOZZLE

Wilger, 5-Way

1шт.

2

84497865

TURRET

Turret, Diaphram Style

1шт.

3

84497866

OUTLET

Radiallock Turret

5шт.

4

84244013

PLUG,Plug,Cap-Black,w/ O-ring

Cap, Combo-Jet Black

5шт.

5

8408

O-RING,13 mm x 3 mm

Combo-Jet, Buna N, 13 x 3MM

5шт.

6

49861

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

5шт.

7

87270667

MODULE

Shut-Off

1шт.

8

87270668

DIAPHRAGM

Fairprene

1шт.

9

84497869

RING,Locking

Hub Lock Ring

1шт.

10

84497868

HUB

Hub Turret

1шт.

11

84497867

SPRING CLIP

Spring Clip

1шт.

12

9825518

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

Buna N, #121

2шт.

13

84497855

SCREEN

Body Screen

1шт.
