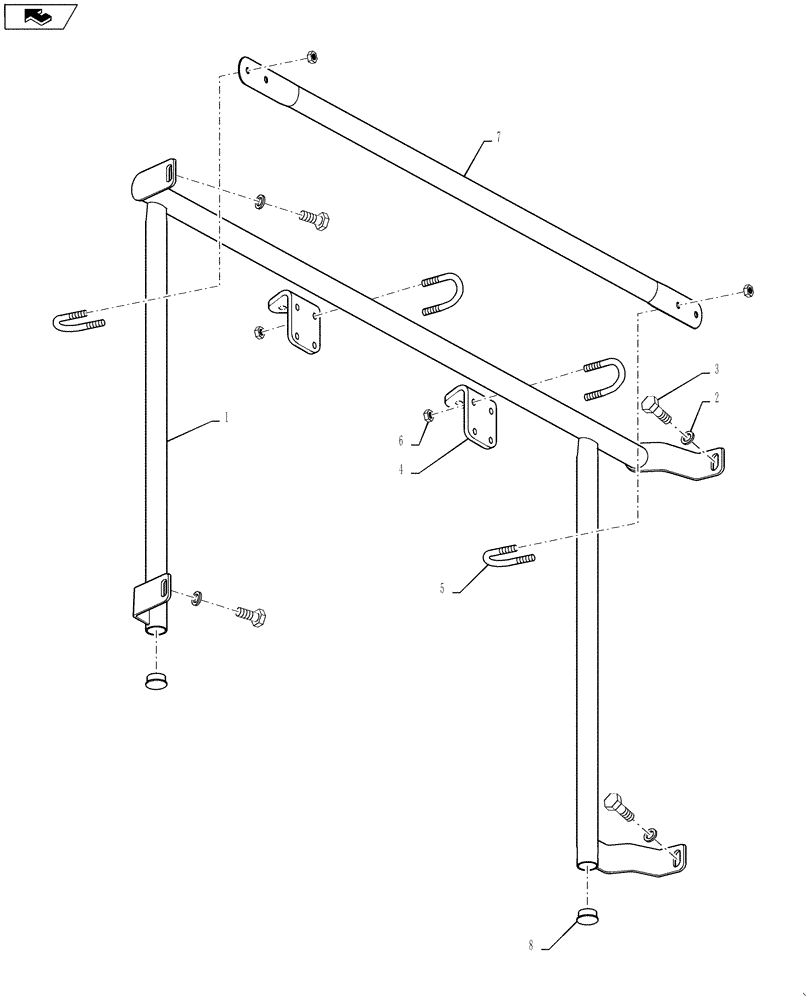

Запчасти Case IH 4420 (11-070[02]) - MONITOR MOUNT, OPTION Options

1

409391A2

MOUNTING PARTS

MONITOR

4шт.

2

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

3

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

4

87530660

BRACKET

MOUNT MONITOR, PAINTED

2шт.

5

87526197

U-BOLT,1/4" - 20 x 1", Round, 1-1/8" W, 2" L

6шт.

6

7770

NUT,Hex, 1/4 - 20, Cl 5

12шт.

7

87530555

TUBE,19.3 mm ID x 919.6 mm L

MOUNT, PAINTED

1шт.

8

353-408

PLUG,Dome, .750" hole, Nylon

2шт.
