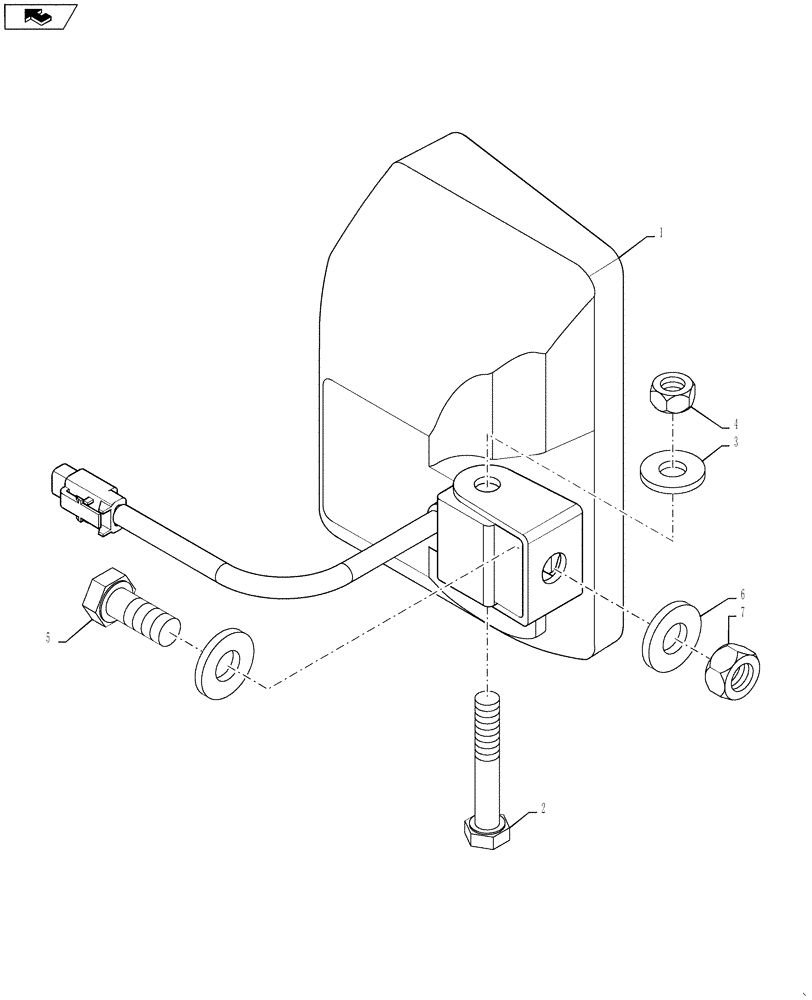

Запчасти Case IH 4420 (11-068) - FLOOD LIGHTING ASSEMBLY Options

1

87658381

WORK LAMP

Assembly

1шт.

1a

87658393

WORK LAMP

1шт.

Parts of Work Light Assembly, P/N 87658381

1шт.

1b

92242C2

BULB,H3, 12V, 35W

H3-35W, 12V

1шт.

Service Parts For Ref. 1

1шт.

1c

87658392

BRACKET

mounting

1шт.

Parts of Work Light Assembly, P/N 87658381

1шт.

1d

87658412

CLIP

anti-droop

1шт.

Parts of Work Light Assembly, P/N 87658381

1шт.

2

86980385

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

3

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

1шт.

4

9991588

NUT,M8 x 1.25, Cl 8

1шт.

5

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

6

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

7

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

1шт.
