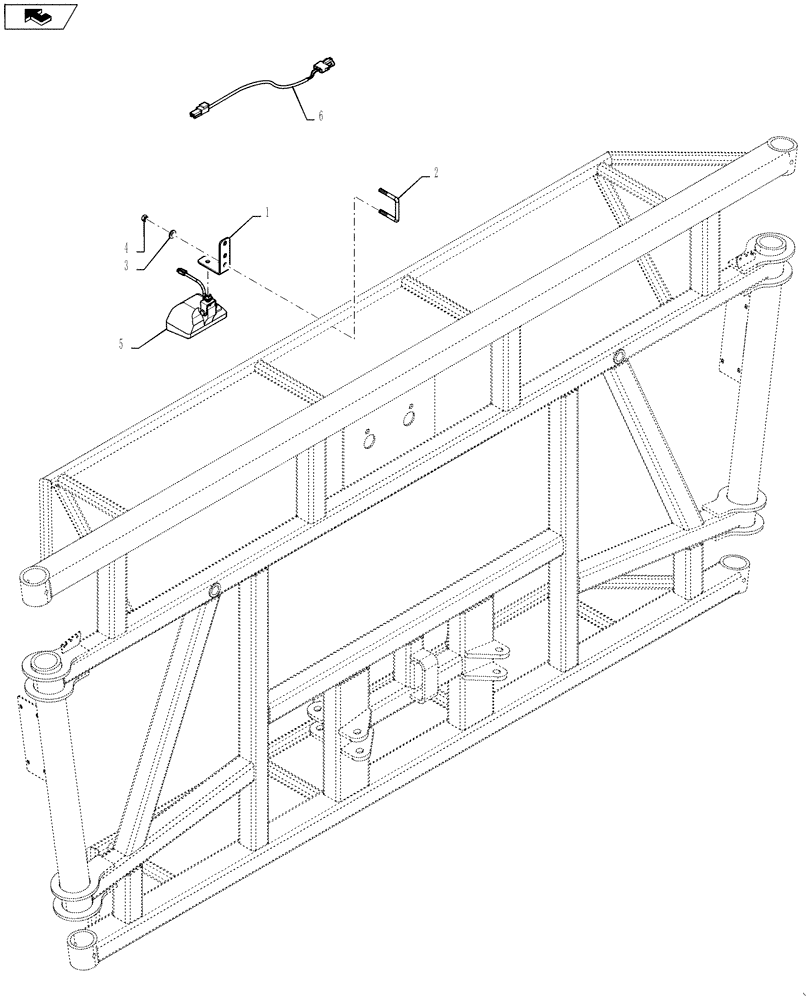

Запчасти Case IH 4420 (11-067) - LIGHT GROUP, CENTER SECTION, 120’ Options

1

87658595

MOUNTING PLATE

Boom Light, Rear

1шт.

2

87586548

U-BOLT

Square, M10 x 64 mm id x 64

1шт.

3

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

4

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

5

87658615

LAMP

Flood, Assembly

1шт.

See Fig. 11-068

1шт.

6

87658598

WIRE HARNESS

Lights, Center Section

1шт.
