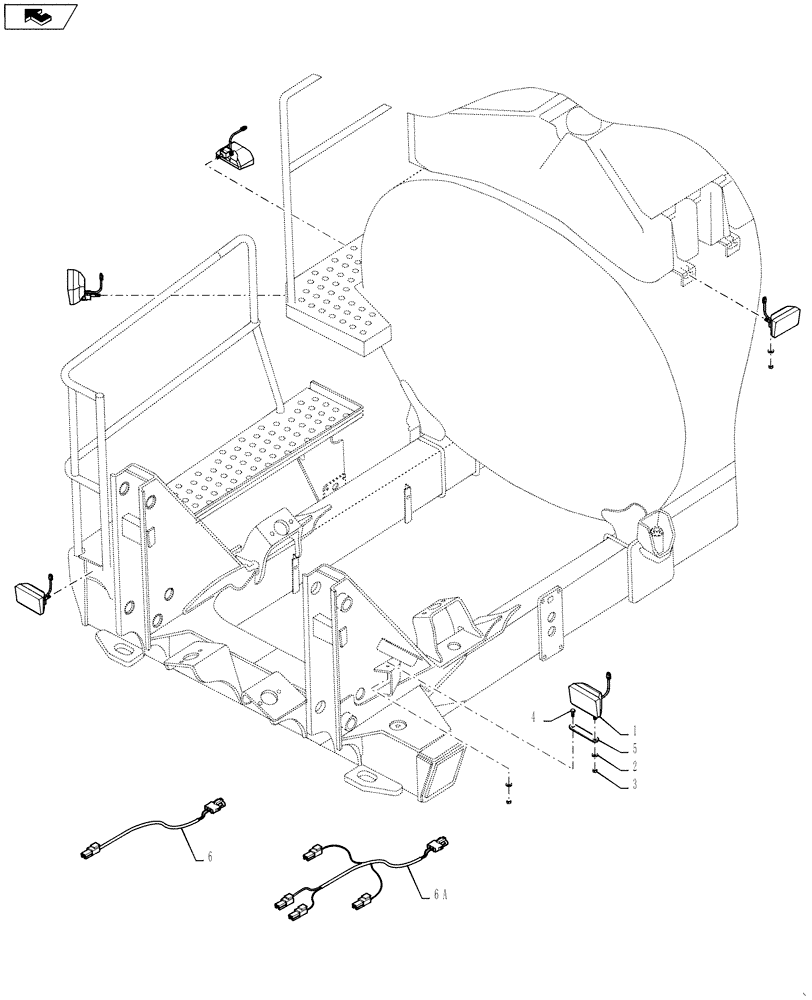

Запчасти Case IH 4420 (11-065) - LIGHT GROUP, BOOM Options

1

87658615

LAMP

Flood, Assembly

5шт.

See Fig. 11-068

1шт.

2

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

6шт.

3

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

6шт.

4

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

5

342215A1

BRACKET

MOUNT, BOOM LIGHT

1шт.

6

87270252

WIRE HARNESS

Boom Lights

1шт.

Not Shown

1шт.

6a

BN325747

HARNESS

BOOM LIGHTS

1шт.

Associated Part of Harness, Op. Station Lamp, P/N 87270252

1шт.
