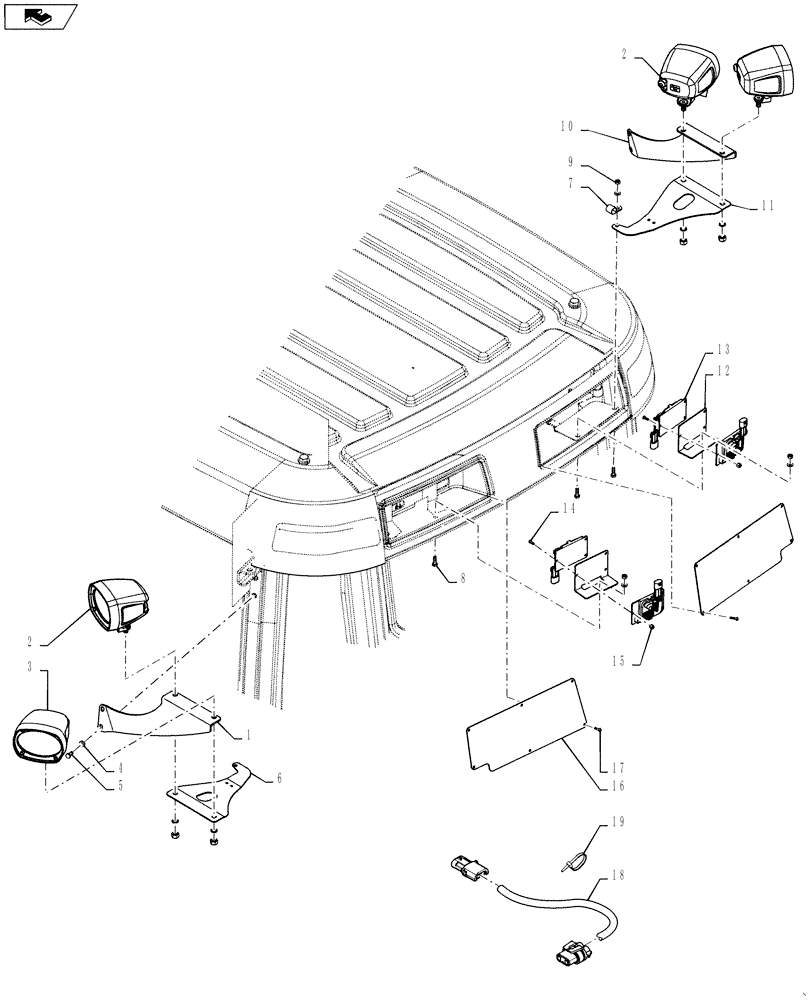

Запчасти Case IH 4420 (11-058[01]) - LIGHT GROUP, HID, CAB Options

1

87634475

SUPPORT

HID LIGHT, LHT

1шт.

2

87475205

LAMP,HID, 12V, 35W, Clear

REAR HID FLOOD

2шт.

3

87475202

LAMP

REAR HID TRAP

2шт.

4

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

12шт.

5

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

6

87634477

SUPPORT

HID LIGHT, LH

1шт.

7

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

2шт.

8

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

9

9991588

NUT,M8 x 1.25, Cl 8

4шт.

10

87634476

SUPPORT

HID LIGHT, RH

1шт.

11

87634478

SUPPORT

HID LIGHT, RH

1шт.

12

87646097

SUPPORT

LIGHT BALLAST

2шт.

13

87475204

BALLAST

REAR HID LIGHT

4шт.

14

87343600

SCREW,Phil Pan Hd, M5 x 16mm, Cl 4.8, Full Thd

6шт.

15

87344030

NUT,Prevailing Torque, M5 x 0.8, CL 8, DOR

6шт.

16

87655609

SUPPORT

CAB LIGHT POCKET

2шт.

17

87016541

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 1"

12шт.

18

87756563

WIRE HARNESS

CAB HID

4шт.

19

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

6шт.
