(11-056) - MIRROR ASSEMBLY, ELECTRIC, BUILT AFTER 5/14/08

Запчасти Case IH 4420 (11-056) - MIRROR ASSEMBLY, ELECTRIC, BUILT AFTER 5/14/08 Options

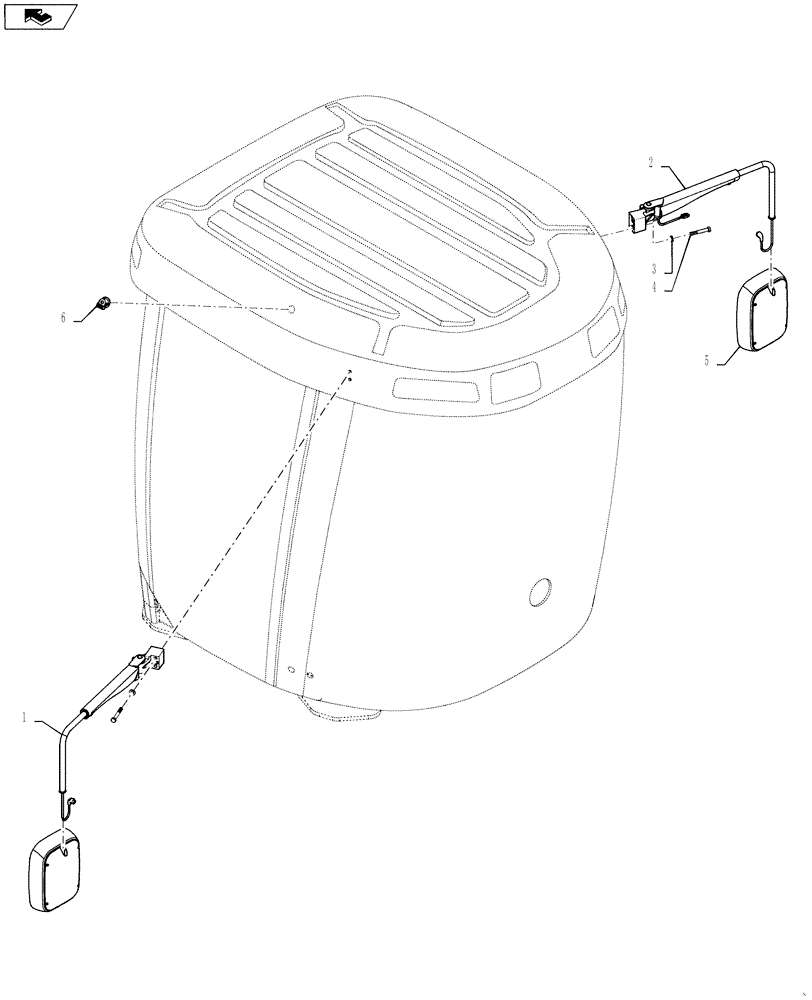

Схема запчастей Case IH 4420 - (11-056) - MIRROR ASSEMBLY, ELECTRIC, BUILT AFTER 5/14/08 Options
5
1
home
6
2
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87686673

ARM

Mirror, RH Electric

1шт.

2

87703119

ARM

Mirror, LH Electric

1шт.

3

896-19012

WASHER,M12 x 24.5 x 3, HT

4шт.

4

514-865

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

5

87363066

MIRROR,238mm x 328mm

Head, Electrical

2шт.

6

280627A1

SWITCH, MIRROR ADJUS

power

1шт.
