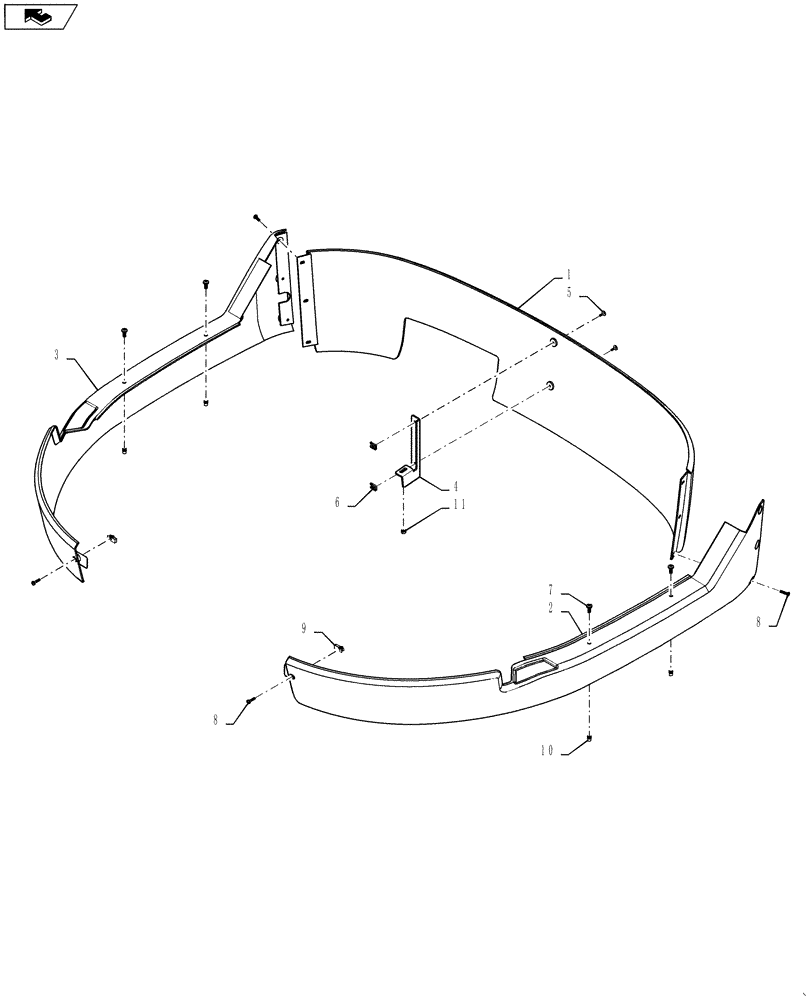

Запчасти Case IH 4420 (02-013) - CAB SKIRT GROUP Cab Exterior

1

BN323562

SKIRT

CAB, REAR

1шт.

2

BN323563

SKIRT

CAB, LH

1шт.

3

87357991

SKIRT COVER

cab, RH

1шт.

4

341574A3

BRACKET

SKIRT

1шт.

5

357481A1

SCREW,Truss, #10 - 16 x 3/4"

#10-16 X 3/4 PH Truss

2шт.

6

87016567

SPRING NUT,Tinn, U, #10

2шт.

7

87343620

SCREW,Pozidriv Pan Hd, M8 x 20mm, Cl 4.8, Full Thd

M8-1.2 X 20, 4.8, DOR

4шт.

8

87343619

SCREW,Phil Pan Hd, M6 x 25mm, Cl 4.8, Full Thd

PHD M6 X 25, TYPE H

8шт.

9

404882A1

SPRING NUT,M6

nut, M6 spring, wide range

2шт.

10

404287A1

INSERT,M6

threaded knurled open

4шт.

11

9991588

NUT,M8 x 1.25, Cl 8

1шт.
