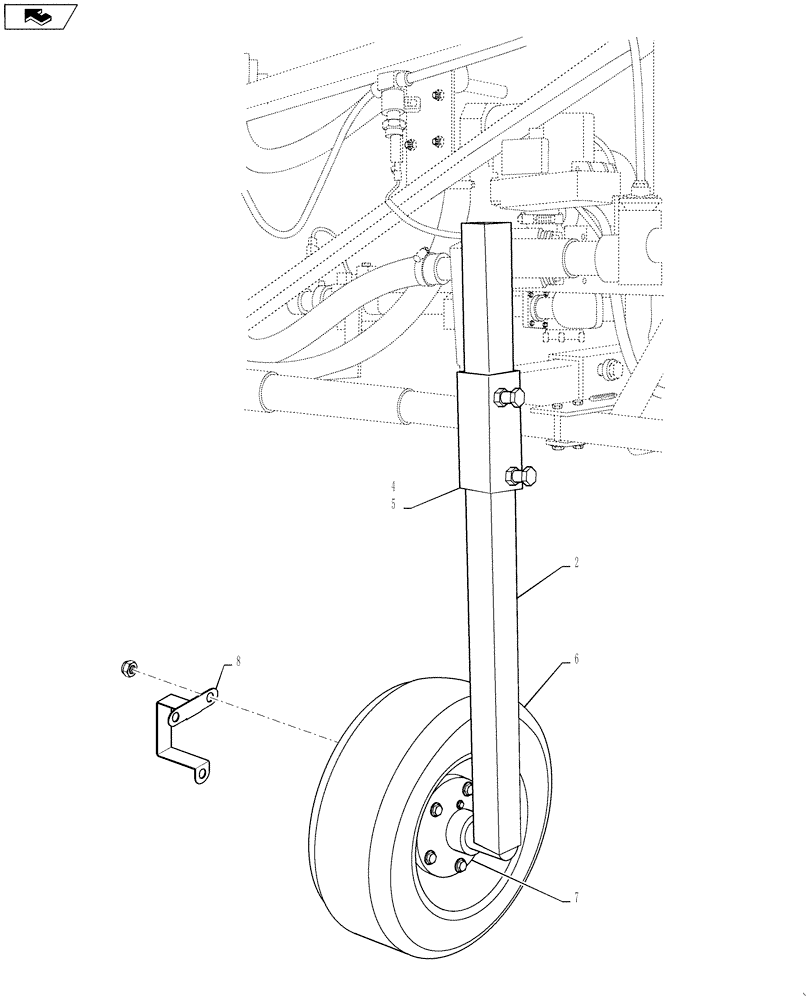

Запчасти Case IH 4420 (11-049[02]) - AUTOBOOM WHEEL KIT 90/100 Options

0

87487173

KIT

Autoboom Wheel, 90/100

1шт.

2

87719426

BRACKET, SUPPORTING

Axle, 24", Straight

2шт.

4

84132941

BRACKET

RECEIVER, AXLE, LH

1шт.

5

84132942

BRACKET

RECEIVER, AXLE, RH

1шт.

6

87719425

TYRE/TIRE

Smooth, 4.8 x 8, 5 Bolt Rim, No Flat

2шт.

Not Shown

1шт.

7

87711682

HUB

5 Bolt

2шт.

8

87720308

BRACKET, SUPPORTING

Hub Retainer

2шт.
