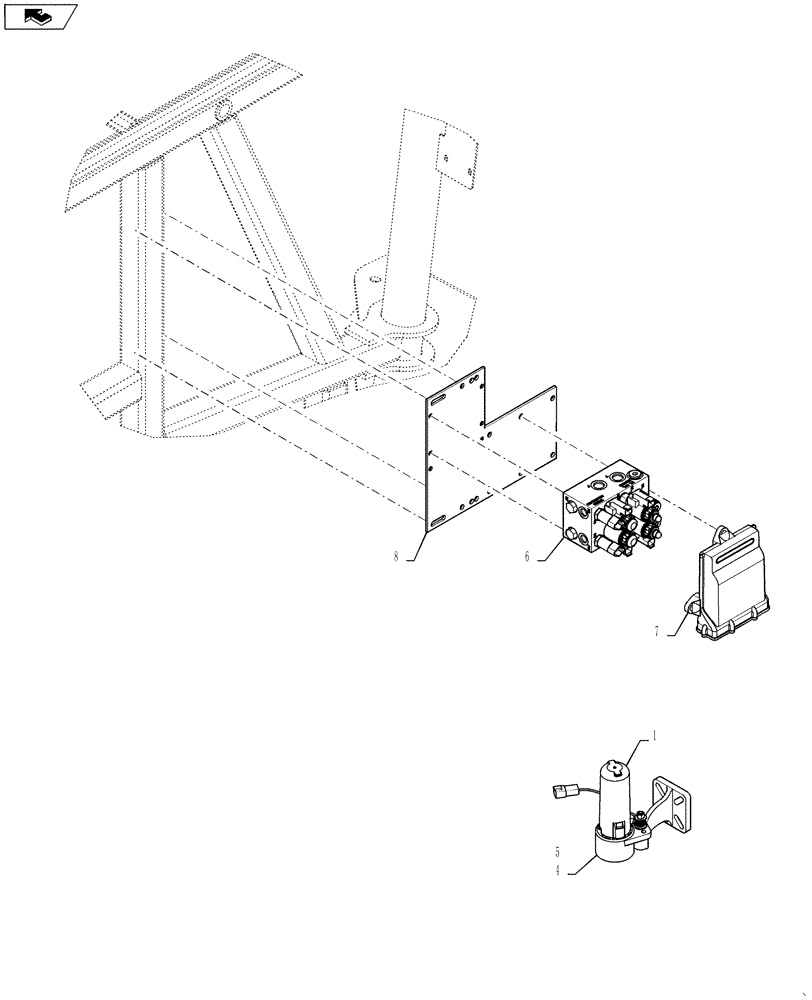

Запчасти Case IH 4420 (11-046[01]) - KIT, AUTOBOOM, 120, BOOM LEVEL ONLY Options

1

47545012

CONTROLLER

KIT, AUTOBOOM, 120 FT BOOM

1шт.

Includes Ref 2 - 10

1шт.

2

87718974

SERVICE MANUAL

CAN AUTOBOOM CALIBRATION, (Not Shown)

1шт.

3

87718973

SERVICE MANUAL

AUTOBOOM, (Not Shown)

1шт.

4

87710685

SENSOR

ULTRASONIC ASSEMBLY RIGHT, (Not Shown)

1шт.

See Fig. 11-047

1шт.

5

87710686

SENSOR

ULTRASONIC ASSEMBLY LEFT, (Not Shown)

1шт.

See Fig. 11-047

1шт.

6

87717363

HYDRAULIC VALVE

ULTRAGLIDE, (Not Shown), Serial Range: -YAT027104

1шт.

See Fig. 06-053

1шт.

6

84299098

HYDRAULIC VALVE

VALVE, HYDRAULIC, ULTRAGLIDE, (Not Shown), Start Serial: YAT027105

1шт.

See Fig. 06-054

1шт.

7

87717349

MODULE

NODE, CAN CONTROL, AUTOBOOM

1шт.

87717349R

REMAN-MODULE

4420 - PATRIOT SPRAYER - 8/06-9/11

1шт.

87717349C

CORE-MODULE

Return Number

1шт.

8

87718266

MOUNTING PLATE

HYD BLOCK, CAN AUTOBOOM, (Not Shown)

1шт.

9

87718980

CABLE

70 FT EXT, ULTRASONIC, SENSOR, (Not Shown)

2шт.

10

84142277

WIRE HARNESS

AUTO-LEVEL, (Not Shown)

1шт.
