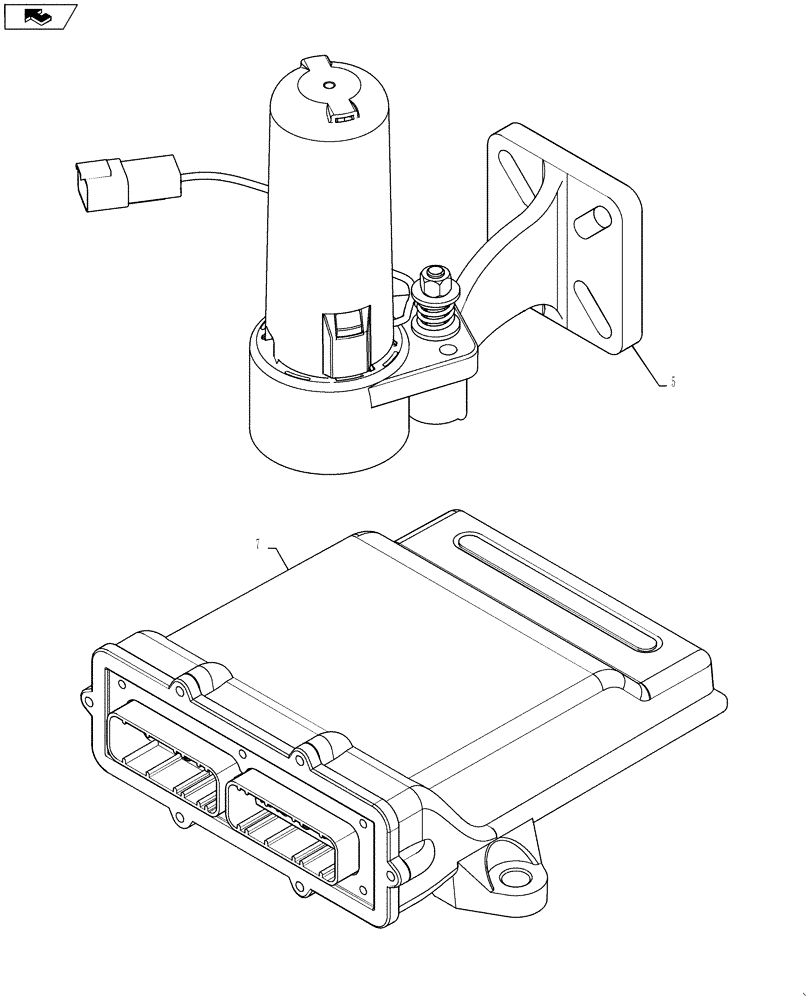

Запчасти Case IH 4420 (11-045) - KIT, AUTOBOOM, 90 AND 100, BOOM LEVEL AND HEIGHT CONTROL Options

0

84247473

KIT

Ultraglide, Autoboom, 90' - 100', Serial Range: -YAT027064

1шт.

0

47545007

CONTROLLER

DIA Kit, Ultraglide, Autoboom, 90' - 100', Start Serial: YAT027065

1шт.

1

87718974

SERVICE MANUAL

CAN, Autoboom Calibration (Not Shown)

1шт.

2

87718973

SERVICE MANUAL

Autoboom, Case IH (Not Shown)

1шт.

3

87710685

SENSOR

Ultrasonic, Right (Not Shown)

1шт.

See Fig. 11-047

1шт.

4

87710686

SENSOR

Ultrasonic, Left (Not Shown)

1шт.

See Fig. 11-047

1шт.

5

84247475

SENSOR

Ultrasonic

1шт.

See Fig. 11-048

1шт.

6

87718266

MOUNTING PLATE

Hydraulic Block, CAN, Autoboom (Not Shown)

1шт.

7

87717349

MODULE

Node, CAN, Autoboom

1шт.

87717349R

REMAN-MODULE

4420 - PATRIOT SPRAYER - 8/06-9/11

1шт.

87717349C

CORE-MODULE

Return Number

1шт.

8

84180940

WIRE HARNESS

60' Extension, UltraglideSensor (Not Shown)

2шт.

9

84241505

WIRE HARNESS

20', CAN, Powerglide Plus/Ultraglide Command (Not Shown)

1шт.

10

87717363

HYDRAULIC VALVE

Ultraglide (Not Shown), Serial Range: -YAT027064

1шт.

See Fig. 06-053

1шт.

10

84299098

HYDRAULIC VALVE

Ultraglide (Not Shown), Start Serial: YAT027065

1шт.

See Fig. 06-054

1шт.
