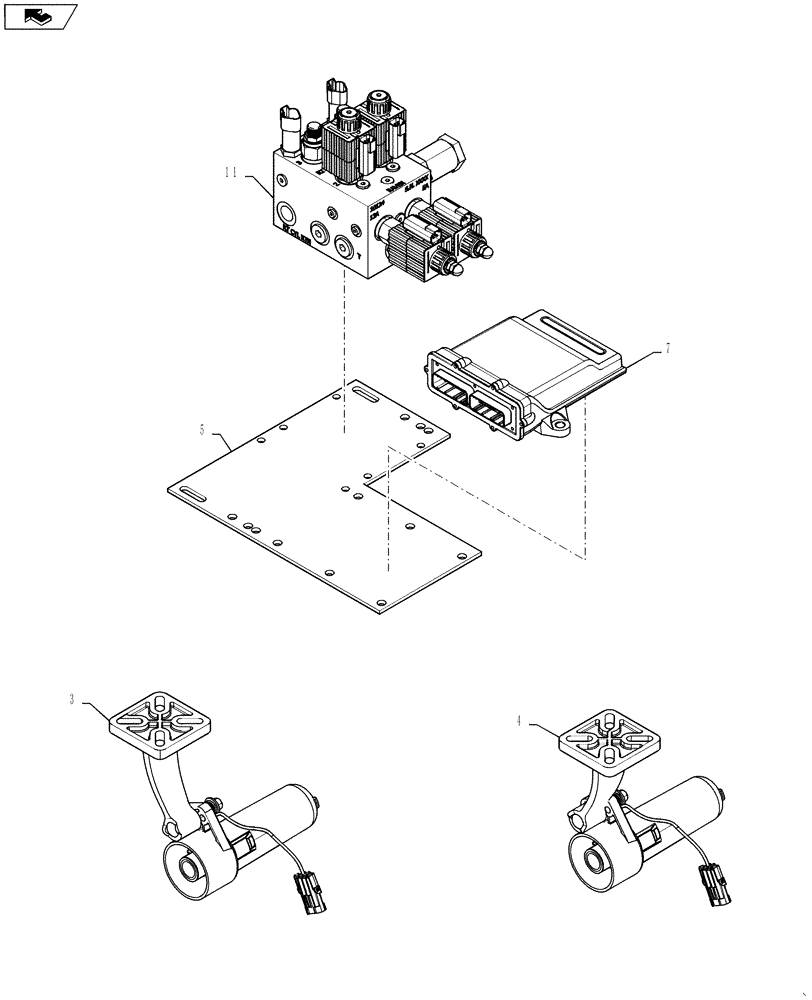

Запчасти Case IH 4420 (11-044) - AUTOBOOM, HEIGHT CONTROL, 90 AND 100, BOOM LEVEL ONLY Options

2

87718973

SERVICE MANUAL

Autoboom, Case IH

1шт.

3

87710685

SENSOR

Ultrasonic, Right

1шт.

See Fig. 11-047

1шт.

4

87710686

SENSOR

Ultrasonic, Left

1шт.

See Fig. 11-047

1шт.

5

87718266

MOUNTING PLATE

Hydraulic Block, CAN, Autoboom

1шт.

6

87718974

SERVICE MANUAL

CAN, Autoboom Calibration

1шт.

7

87717349

MODULE

Node, CAN, Autoboom

1шт.

87717349R

REMAN-MODULE

4420 - PATRIOT SPRAYER - 8/06-9/11

1шт.

87717349C

CORE-MODULE

Return Number

1шт.

8

84180985

WIRE HARNESS

Extension, Ultraglide Sensor, Start Year: 01-JUN-09

2шт.

8

87718980

CABLE

70' Extension, Ultrasonic Sensor, Years: -01-JUN-09

2шт.

9

87718983

CABLE

20', CAN, Ultraglide Command

1шт.

11

87717363

HYDRAULIC VALVE

Ultraglide

1шт.

See Fig. 06-053

1шт.
