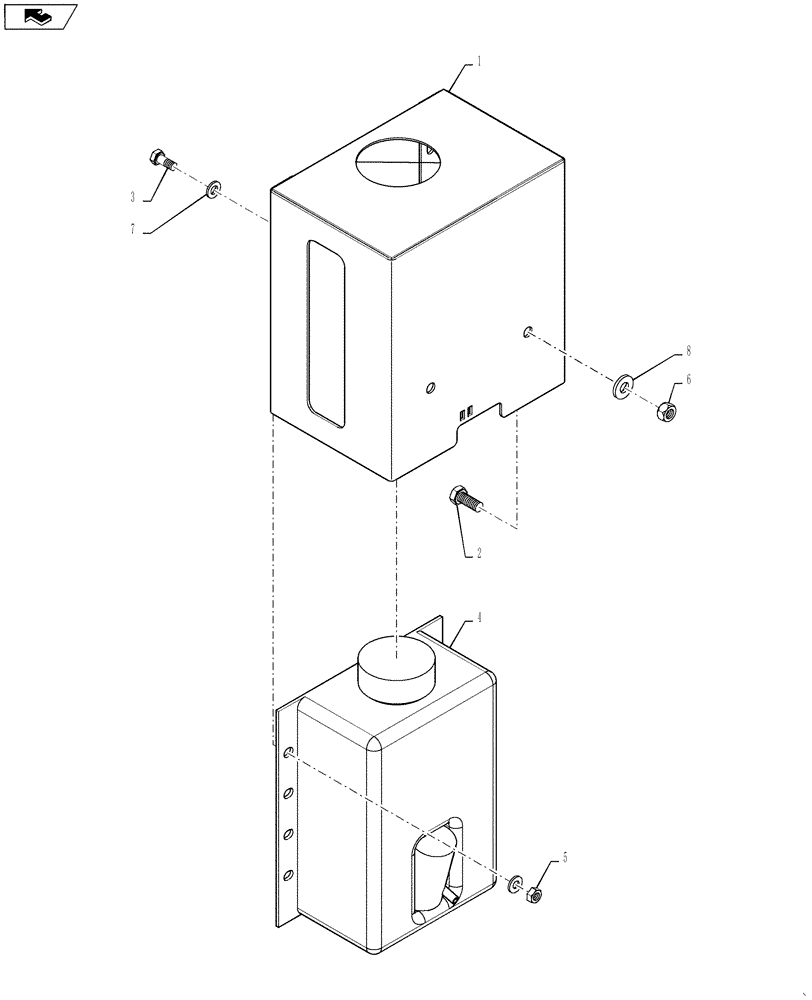

Запчасти Case IH 4420 (02-012) - WINDSHIELD WASHER GROUP Cab Exterior

0

BN309265

CABLE

TIE

1шт.

1

BN324504

BRACKET

Mount, Washer Bottle

1шт.

2

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

2шт.

3

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

4

87014923

RESERVOIR, WINDSHIEL

12V, With Pump

1шт.

4a

87439461

CAP

Washer Bottle, Vented With Tether

1шт.

Associated Part Of w/shield Wash Bottle 12v, P/N BN67979

1шт.

4b

BN98901

PUMP

12V. electric

1шт.

Associated Part Of w/shield Wash Bottle 12v, P/N BN67979

1шт.

5

87344227

SERRATED NUT

Serrated, M8 SPL DOR

1шт.

6

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

7

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

4шт.

8

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

2шт.
