Запчасти Case IH 4420 (11-043[02B]) - AUTOBOOM, ULTRAGLIDE, 90 AND 100, BOOM LEVEL AND HEIGHT CONTROL Options

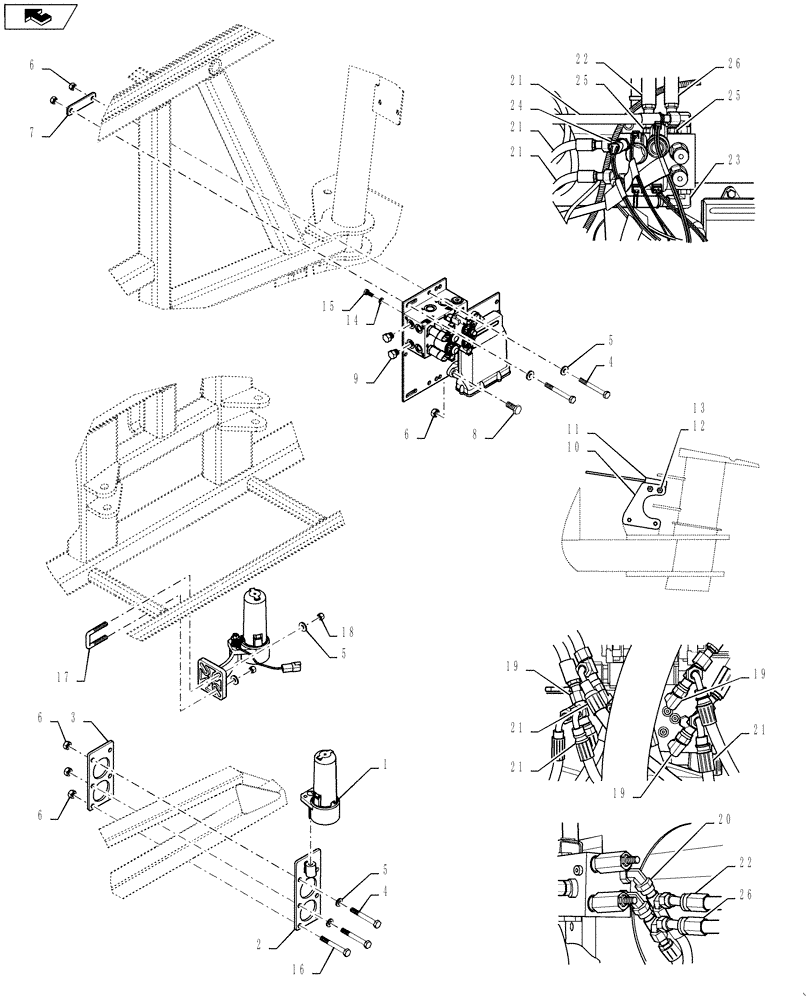

Схема запчастей Case IH 4420 - (11-043[02B]) - AUTOBOOM, ULTRAGLIDE, 90 AND 100, BOOM LEVEL AND HEIGHT CONTROL Options
12
21
21
8
25
16
2
5
4
26
14
19
21
26
22
19
25
17
11
home
13
1
21
23
22
19
6
3
6
4
15
5
18
21
20
6
9
5
21
6
24
10
7

Артикул

Название

Примечание

Количество

1

84247473

KIT

Kit, Autoboom, 90' and 100', Serial Range: -YAT027064

1шт.

See Fig. 11-045

1шт.

1

47545007

CONTROLLER

DIA Kit, Autoboom, 90' and 100', Start Serial: YAT027065

1шт.

See Fig. 11-045

1шт.

2

84255690

BRACKET

Sensor Mount

2шт.

3

84256576

BRACKET

Base, Sensor Mount

2шт.

4

86980409

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

12шт.

5

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

14шт.

6

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

19шт.

7

87620862

PLATE

Backer, 2.5" Tube

2шт.

8

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

9

BN446048

PLUG

HEX, ORB 9/16-18 3/8 Tube

2шт.

10

87723957

BASE PLATE

Proximity Switch

2шт.

11

BN315498

SWITCH

Proximity

2шт.

12

86980359

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

13

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

4шт.

14

80681

LOCK WASHER,5/16"

4шт.

15

87342632

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

16

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

4шт.

17

BN67284

U-BOLT

3/8-16, Square Bend, 1.25" ID x 2.75" Long

2шт.

18

87343974

NUT,Prev Torque, 3/8" - 16, Gr C, DOR

4шт.

19

BN302435

TEE

11/16 -16 ORFS x 11/16 -16 ORFS Swivel

4шт.

20

BN302436

TEE

13/16 -16 ORFS x 13/16 -16 ORFS Swivel

2шт.

21

84164481

HOSE,9.53mm ID x 1066mm L, SAE 100R17

-6 X 1066MM

4шт.

22

87487132

HOSE ASSY.

-8 X 813 MM

1шт.

23

BN302554

FITTING

11/16-16 ORFS x 3/4-16 ORB x 90 Deg

2шт.

24

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

2шт.

25

BN302650

FITTING

13/16 -16 ORFS x 3/4 -16 ORB

2шт.

26

87487133

HOSE ASSY.

-8 X 864 MM

1шт.

Выбрано товаров: 29
