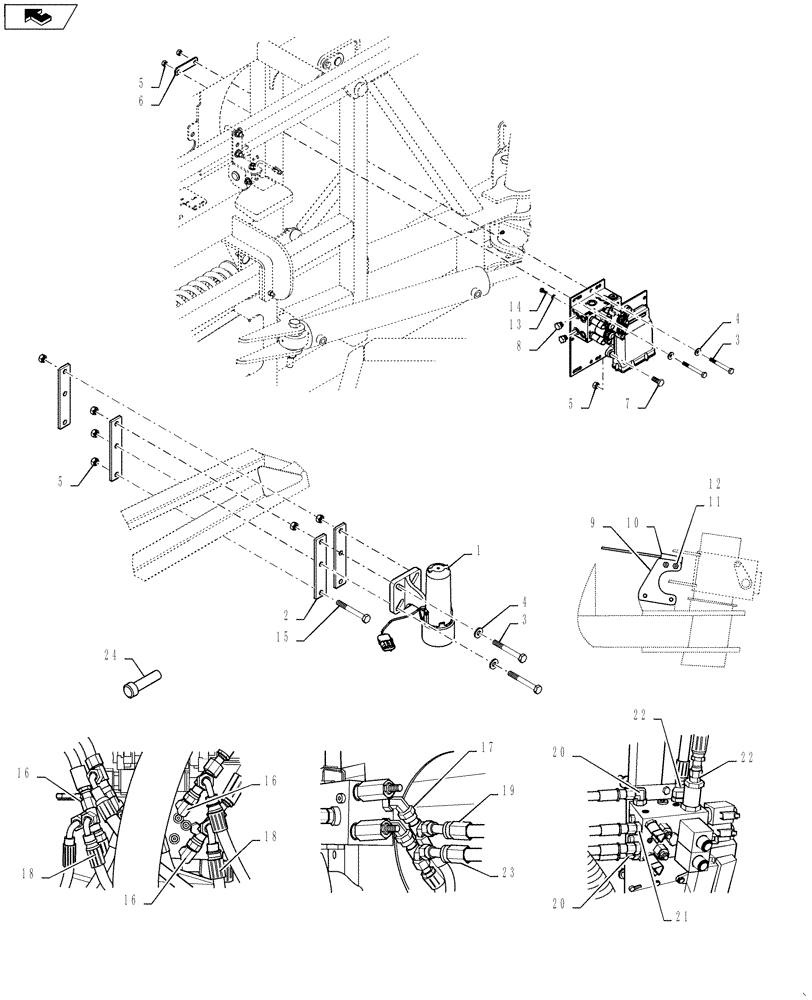

Запчасти Case IH 4420 (11-043[01A]) - AUTOBOOM, ULTRAGLIDE, 90 AND 100, BOOM LEVEL ONLY Options

1

87629615

KIT

Autoboom Height Control

1шт.

See Fig. 11-044

1шт.

2

87707554

BRACKET, SUPPORTING

Backer, Spraybar

8шт.

3

86980409

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

12шт.

4

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

10шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

19шт.

6

87620862

PLATE

Backer, 2 1/2" Tube

2шт.

7

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

8

BN446048

PLUG

HEX, ORING, -6, 9/16-18PLATE

2шт.

9

87723957

BASE PLATE

PROXIMITY, SWITCH

2шт.

10

BN315498

SWITCH

PROXIMITY

2шт.

11

86980359

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

12

353308

NUT,M6 x 1.0, Cl 8

4шт.

13

80681

LOCK WASHER,5/16"

4шт.

14

86512037

BOLT,Hex, 5/16" - 24 x 3/4", Gr 8, Full Thd

5/16-24 X 3/4 FULL GR8

4шт.

15

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

4шт.

16

BN302435

TEE

11/16 -16 ORFS x 11/16 -16 ORFS Swivel

4шт.

17

BN302436

TEE

13/16 -16 ORFS x 13/16 -16 ORFS Swivel

2шт.

18

342591A1

HOSE ASSY.

6 x 40"

4шт.

19

87487132

HOSE ASSY.

8 x 813 mm

1шт.

20

BN302554

FITTING

11/16-16 ORFS x 3/4-16 ORB x 90 Deg

2шт.

20a

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

2шт.

20b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

2шт.

21

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

2шт.

22

BN302650

FITTING

13/16 -16 ORFS x 3/4 -16 ORB

2шт.

23

87487133

HOSE ASSY.

8 x 864 mm

1шт.

24

453132C1

PLUG

DEUTSCH, CAVITY SEAL

8шт.
