Запчасти Case IH 4420 (11-032) - FOAMER, TRANSFER PUMP GROUP Options

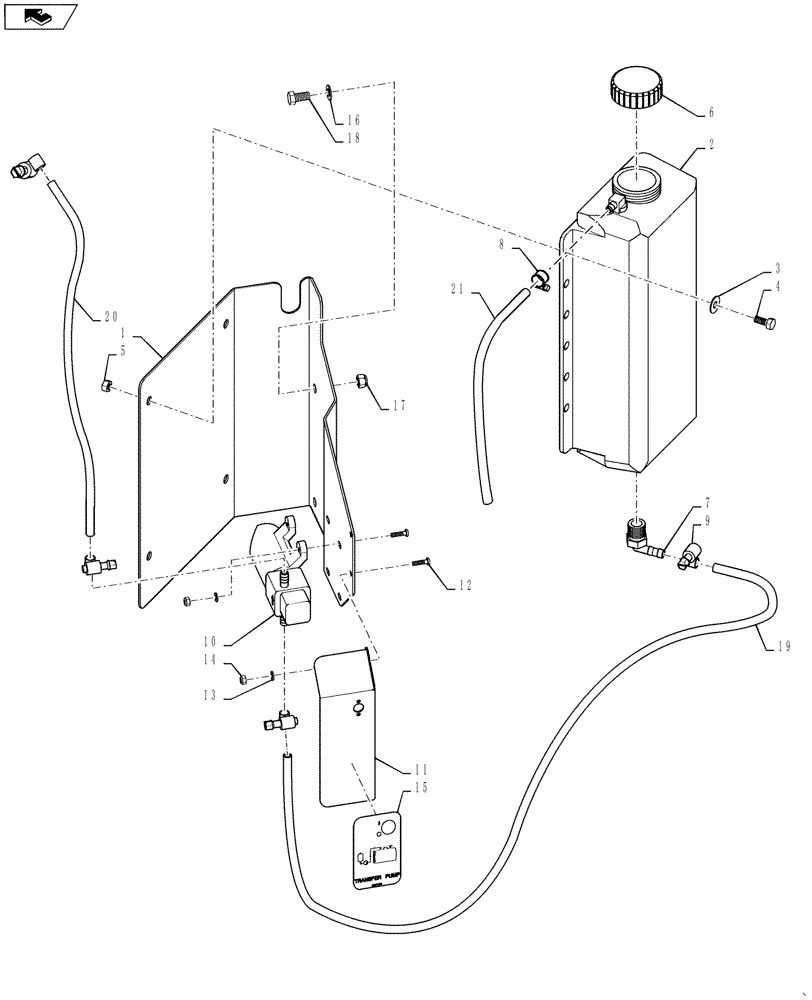

Схема запчастей Case IH 4420 - (11-032) - FOAMER, TRANSFER PUMP GROUP Options
5
7
21
8
10
16
home
15
19
20
2
13
6
3
18
9
4
1
11
14
12
17

Артикул

Название

Примечание

Количество

1

87271981

MOUNTING PLATE

TANSFER PUMP

1шт.

2

BN322944

TANK

6 QT, POLY, NATURAL

1шт.

3

BN50142

WASHER,5/16", Stainless Steel

4шт.

4

BN50476

BOLT,5/16"-18 x 0.75", Stainless

4шт.

5

BN55361

NUT,5/16"-18, Nylon, Stainless

4шт.

6

86507190

CAP

Coolant Recovery Bottle

1шт.

7

BN325981

ELBOW

1/2" MPT x 3/8" Hose Barb, Poly

1шт.

8

BN310450

HOSE CLAMP

#3, Stainless Steel

1шт.

9

87485000

CLAMP,0.25" - 0.62"

#4, Stainless Steel

4шт.

10

87727677

PUMP,12V

Diaphragm, 1 GPM, 12V, Foam Transfer

1шт.

11

87271978

PANEL

Switch, Transfer Pump

1шт.

12

BN311631

BOLT,#10 - 24 x 3/4", SST

10-24 x .75, BSH, Stainless Steel

6шт.

13

BN310265

WASHER

10, Stainless Steel

6шт.

14

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

6шт.

15

87271976

DECAL

Transfer Pump

1шт.

16

BN50146

WASHER,3/8", Stainless

3шт.

17

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

3шт.

18

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

3шт.

19

87266748

HOSE

3/8" x 10.5" Clear

1шт.

20

86986177

HOSE,0.38" ID x 100.00"

Clear

1шт.

21

BN324759

HOSE,0.25" ID x 17.00"

EPDM

1шт.

Выбрано товаров: 21
