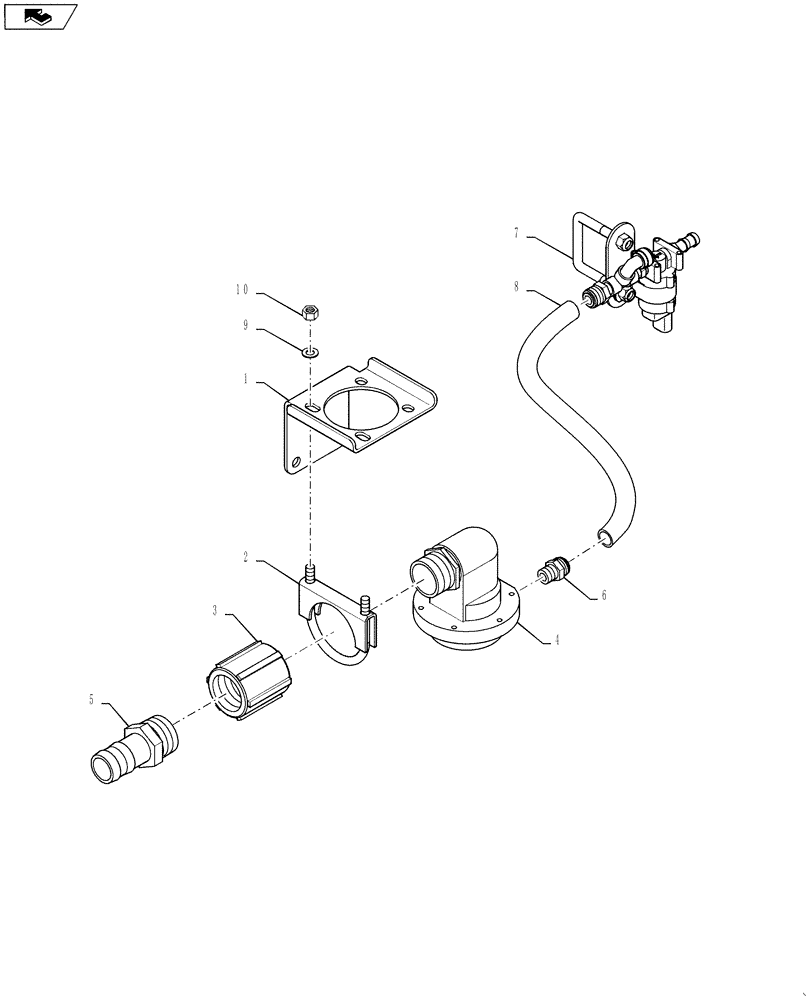

Запчасти Case IH 4420 (11-027) - CHAMBER GROUP, LH Options

1

87266740

PLATE

Foamer Chamber

1шт.

2

BN21276

CLAMP

2 1/2" Muffler

2шт.

3

BN305269

COUPLING

1-1/4" NPT, Poly

3шт.

4

BN307636

CHAMBER

Foam Mixing

4шт.

5

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

5шт.

6

BN2399412

ADAPTER

Tube MC38038

6шт.

7

87666448

VENTURI

Solenoid Assembly, LH

7шт.

See Fig. 11-087

1шт.

8

BN2292088

AIR INTAKE TUBE

3/8" Black

8шт.

Cut 15" from bulk roll

1шт.

9

87529237

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

0.406 x 0.812 x 0.065, HTS, DOR, HDN

9шт.

10

87343970

NUT,3/8"-16, G8, DOR

10шт.
