Запчасти Case IH 4420 (11-025) - FOAMER DROP GROUP, LEFT, 120’ BOOM Options

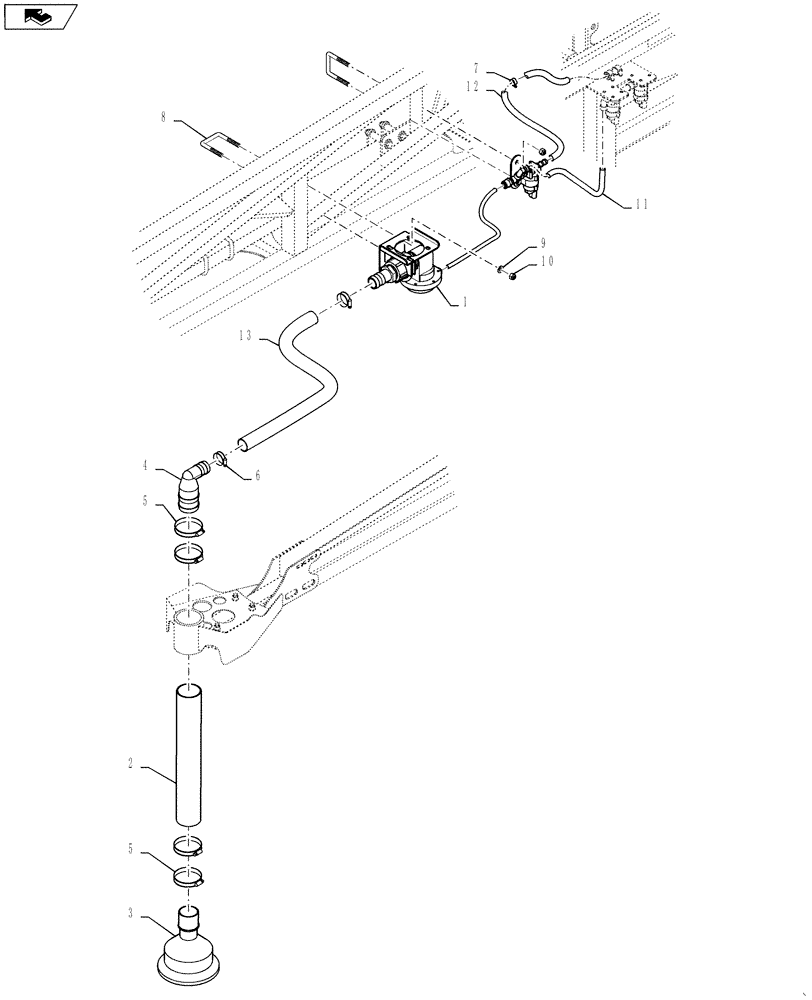

Схема запчастей Case IH 4420 - (11-025) - FOAMER DROP GROUP, LEFT, 120’ BOOM Options
12
2
4
home
3
8
9
6
10
5
5
11
1
7
13

Артикул

Название

Примечание

Количество

1

87711942

LH FOAM CHAMBER, SEE FIG. 11-027

1шт.

2

87266611

HOSE

Foam Drop, 2" x 16"

1шт.

3

BN2403252

BELL

Foam Marker

1шт.

4

BN310939

FITTING,2" Male Thread x 1-1/4" 90 Degree Hose Barb

2" Hose Barb x 1-1/4" Hose Barb, 90 DEG, Poly

1шт.

5

BN310449

CLAMP,50mm - 65mm

#32, Stainless Steel

4шт.

6

BN310447

HOSE CLAMP

#20, Stainless Steel

2шт.

7

BN324022

HOSE CLAMP

#8, Stainless Steel

1шт.

8

BN319919

U-BOLT

2.06 ID x 2-3/4 x 3/8

2шт.

9

BN50146

WASHER,3/8", Stainless

4шт.

10

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

11

BN2292088

AIR INTAKE TUBE

3/8" Black

44шт.

12

BN54239

HOSE,12.7mm ID x 3048mm L

Black-1/2 EPDM, Discharge

44шт.

13

BN310394

HOSE,1.31" ID

1-1/4 SUCTION, OVER, 21.5

1шт.

Выбрано товаров: 13
