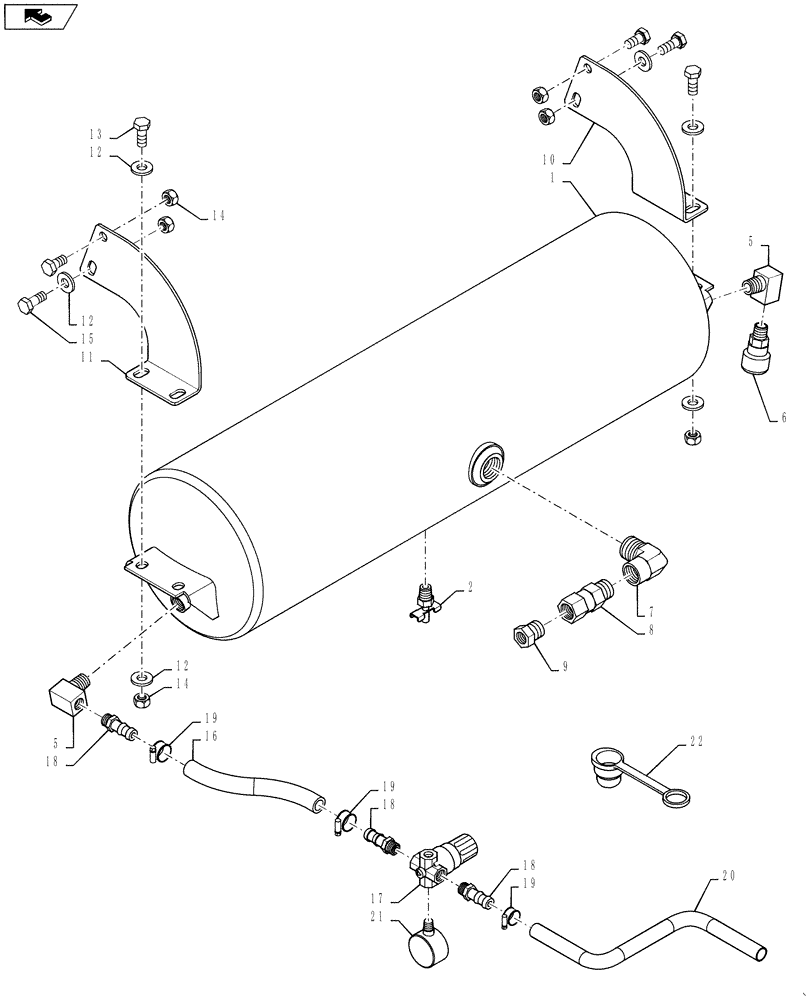

Запчасти Case IH 4420 (11-017) - TURBO FOAMER TANK GROUP Options

1

BN316553

AIR TANK

8" DIA X 32"

1шт.

2

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

Valve, 1/4" Weatherhead

1шт.

5

87032210

ELBOW

90º Street, 3/8M X 1/4F, BRS

2шт.

6

BN2393326

COUPLING

1/4" Female Body, Will Mate With Industrial Interchange 1/4" Male Body

1шт.

7

BN319011

FITTING

NPT -12M-8F 90DEG

1шт.

8

BN2295247

CHECK VALVE

Air #5003980

1шт.

9

BN51102

FITTING

ADPT, 1/2 NPT X 3/8 NPT, STL

1шт.

10

342620A1

MOUNTING PLATE

AIR TANK, RH

1шт.

11

342621A1

MOUNTING PLATE

Air Tank, LH

1шт.

12

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

10шт.

13

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

6шт.

14

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

15

86980399

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10-1.5 X 20, HH, 8.8, DOR

2шт.

16

BN317965

HOSE,12.70 mm ID x 203.00 mm

Drain, Oil

1шт.

17

87388151

REGULATOR

Air Pressure

1шт.

18

BN324008

FITTING

1/4" NPT x 1/2" Hose Barb, Poly

3шт.

19

BN324022

HOSE CLAMP

#8, Stainless Steel

3шт.

20

344408A1

HOSE

1/2" X 214" EPDM

1шт.

20

BN324024

HOSE,0.50" ID x 220.00"

EPDM

1шт.

21

86986803

GAUGE

0-30 PSI, 1/8" NPT

1шт.

22

87267960

COVER

dust, air chuck

1шт.
