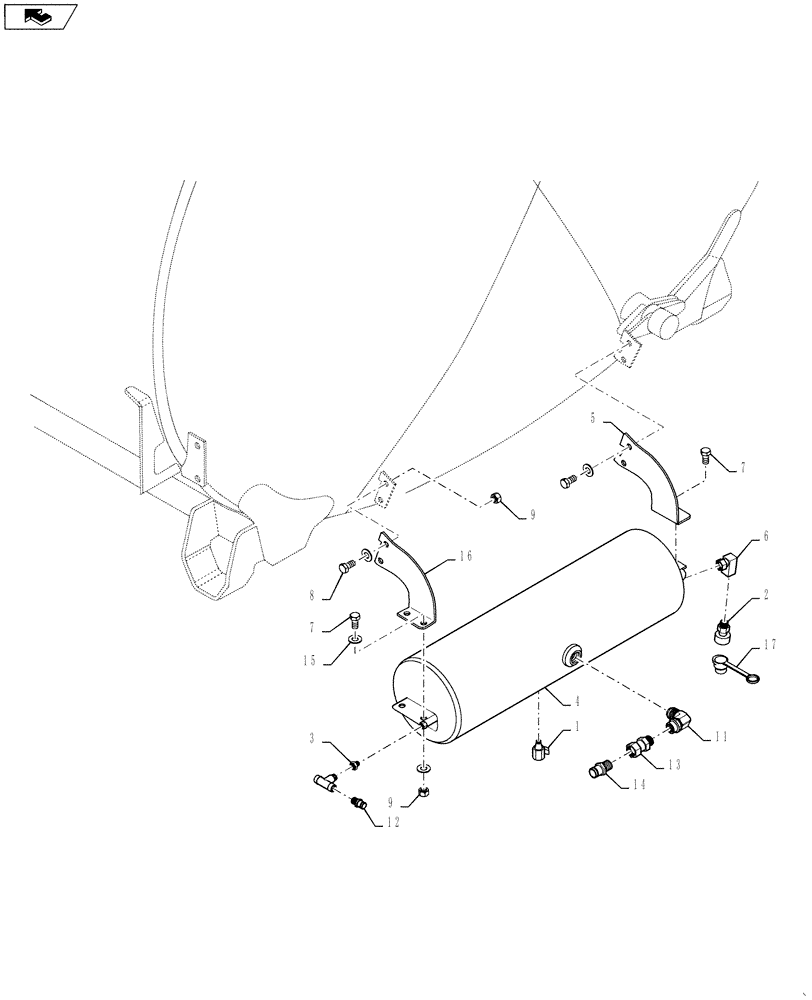

Запчасти Case IH 4420 (11-016) - AIR TANK GROUP Options

1

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

Valve, 1/4" Weatherhead

1шт.

2

BN2393326

COUPLING

1/4" Female Body, Will Mate With Industrial Interchange 1/4" Male Body

1шт.

3

87032209

BUSHING

RED, 3/8M X 1/4F, BRS

2шт.

4

BN316553

AIR TANK

8" DIA X 32"

1шт.

5

342620A1

MOUNTING PLATE

AIR TANK, RH

1шт.

6

87032210

ELBOW

90º Street, 3/8M X 1/4F, BRS

1шт.

7

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

6шт.

8

86980399

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10-1.5 X 20, HH, 8.8, DOR

2шт.

9

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

11

BN319011

FITTING

NPT -12M-8F 90 DEG

1шт.

12

BN2290181

FITTING

0103-4-4

1шт.

12a

BN2290174

FITTING

0103-4-6

1шт.

13

BN2295247

CHECK VALVE

Air #5003980

1шт.

14

BN316060

FITTING

10MJ-8MP

1шт.

15

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

10шт.

16

342621A1

MOUNTING PLATE

Air Tank, LH

1шт.

17

87267960

COVER

dust, air chuck

1шт.
