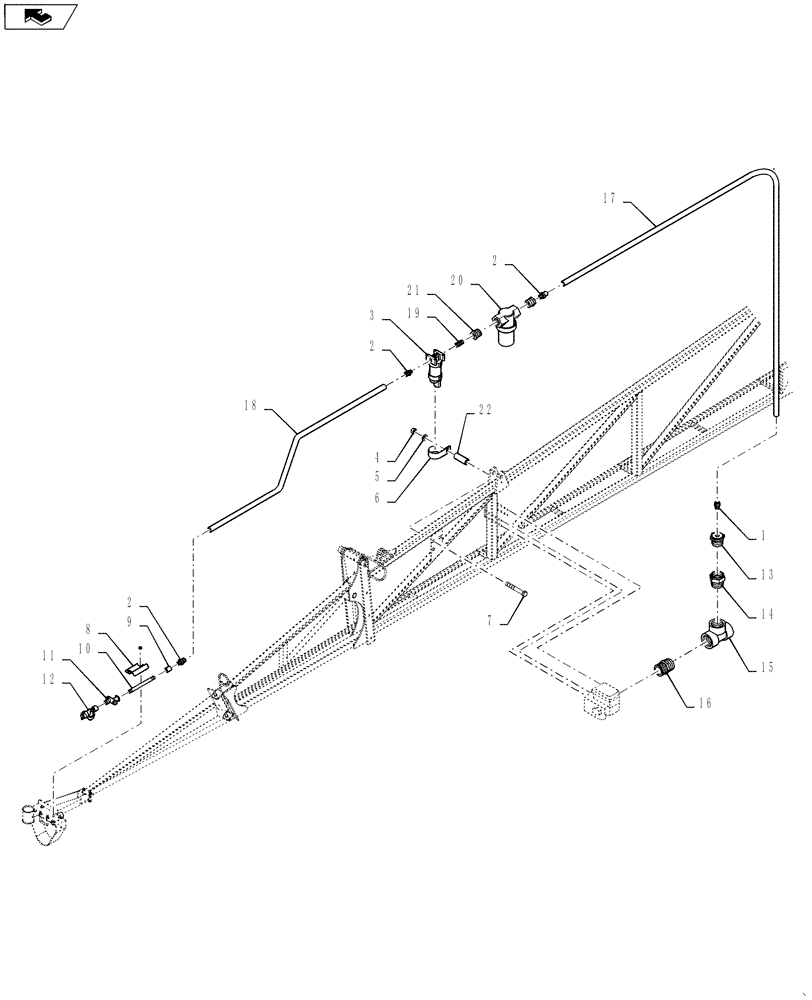

Запчасти Case IH 4420 (11-014) - NOZZLE SPACING GROUP, HIGH VOLUME, BOOM, FENCE ROW Options

1

BN2399412

ADAPTER

Tube MC38038

1шт.

2

BN2399403

ADAPTER

1/4" MPT x 3/8" OD Tube, Push Lock Fitting

3шт.

3

343778A1

SOLENOID

valve, 1/4" NPT

1шт.

4

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

1шт.

5

BN50146

WASHER,3/8", Stainless

1шт.

6

515-23365

CLAMP,1 7/16", Insul, 3/8" Bolt

1шт.

7

BN50272

BOLT

3/8-16 X 2.75, Stainless Steel

1шт.

8

86986105

CLAMP

Plate, Nozzle

1шт.

9

BN73015

COUPLING

1/4" NPT SS Full

1шт.

10

BN313361

NIPPLE,1/4" NPT x 6mm SS

NIPPLE

1шт.

11

BN313256

NOZZLE INJECTION

W/SWIVEL

1шт.

12

BN313255

NOZZLE INJECTION

W/CHECK VALVE

1шт.

13

BN320968

BUSHING,1-1/4" MPT x 3/8" FPT Reducing Bushing

RB, 1.25 X .375, POLY

1шт.

14

BN73726

REDUCER FITTING,1-1/2" MPT x1-1/4" FPT Reducing Bushing

1-1/2" NPT X 1-1/4" NPT, Poly

1шт.

15

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

1шт.

16

BN73715

NIPPLE,1-1/2" Short Poly Nipple

1 1/2" Short Poly

1шт.

17

BN321269

HOSE,0.38" ID x 8.00'

Synflex

1шт.

18

BN313254

FLEXIBLE HOSE

3/8" Synflex

1шт.

19

86986808

NIPPLE

1/4" Short, Poly

1шт.

20

87565152

FILTER STRAINER,1/2"x 1/2"Clear Bowl Strainer w/50 Mesh Screen

1/2" FP, 50 Mesh, Poly

2шт.

See Fig 11-013(04) For Service Parts Breakdown

1шт.

21

BN304521

REDUCER

1/2 x 1/4 Red, Poly

2шт.

22

BN300892

TUBE

spacer, 3/8 Bolt

1шт.
