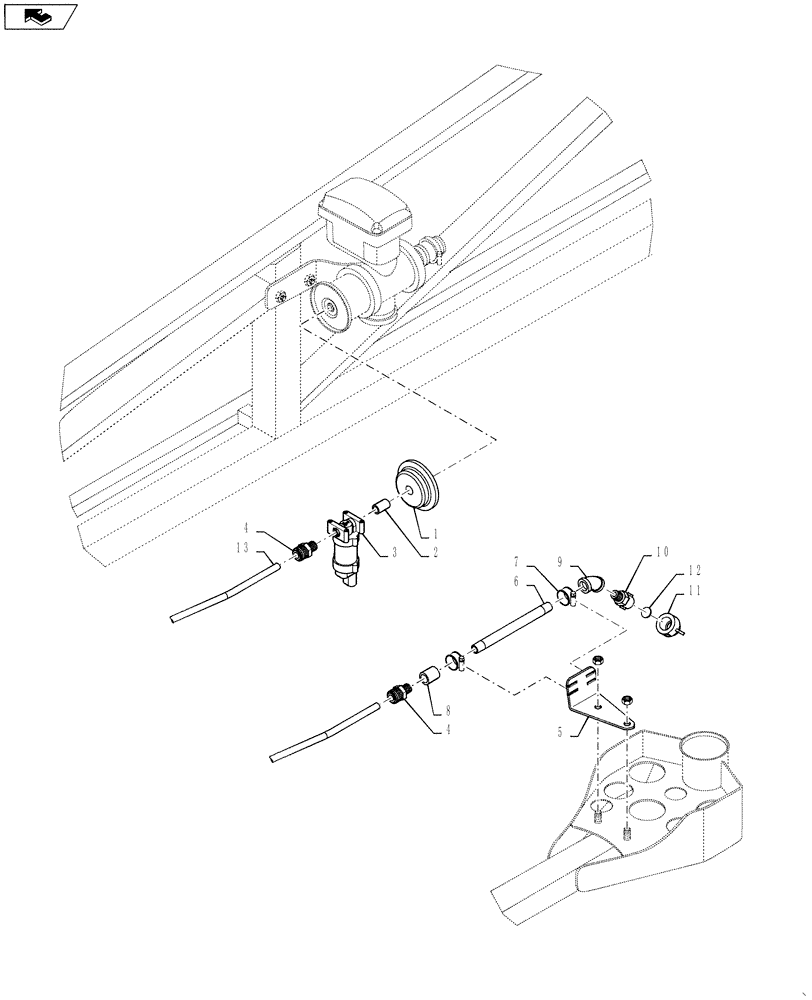

Запчасти Case IH 4420 (11-013[02]) - NOZZLE, FENCE ROW, 90 & 100, LOW-FLOW, W/HARNESS, ASN Y9T026405 Options

1

87265461

PLUG

2" FLG X 1/4" FP

2шт.

2

BN1420036

NIPPLE

1/4" CLOSE SS

2шт.

3

343778A1

SOLENOID

VALVE, 1/4" NPT

2шт.

4

BN2399403

ADAPTER

TUBE

4шт.

5

84235803

MOUNT

NOZZLE, FENCE ROW

2шт.

6

BN313361

NIPPLE,1/4" NPT x 6mm SS

NIPPLE 1/4" NPT X 6.0 SS

2шт.

7

BN324022

HOSE CLAMP

#8, Stainless Steel

4шт.

8

BN73015

COUPLING

1/4 NPT SS FULL

2шт.

9

84235806

PIPE FITTING

45 DEG, 1/4-18 FNPT, SS

2шт.

10

84223253

ADAPTER

NOZZLE-.25MP,POLY

2шт.

11

BN74619

CAP

W/GASKET

2шт.

12

BN69558

PLUG

SPRAYTIP, SS

2шт.

13

BN2292088

AIR INTAKE TUBE

3/8 BLACK

30.5шт.

14

NSS

NOT SOLD SEPARAT

ELECTRICAL GROUP, Fence Row

1шт.

See Fig. 12-015

1шт.
