Запчасти Case IH 4420 (11-013[01]) - NOZZLE, FENCE ROW, 90 & 100, STANDARD FLOW, ASN Y9T026405 Options

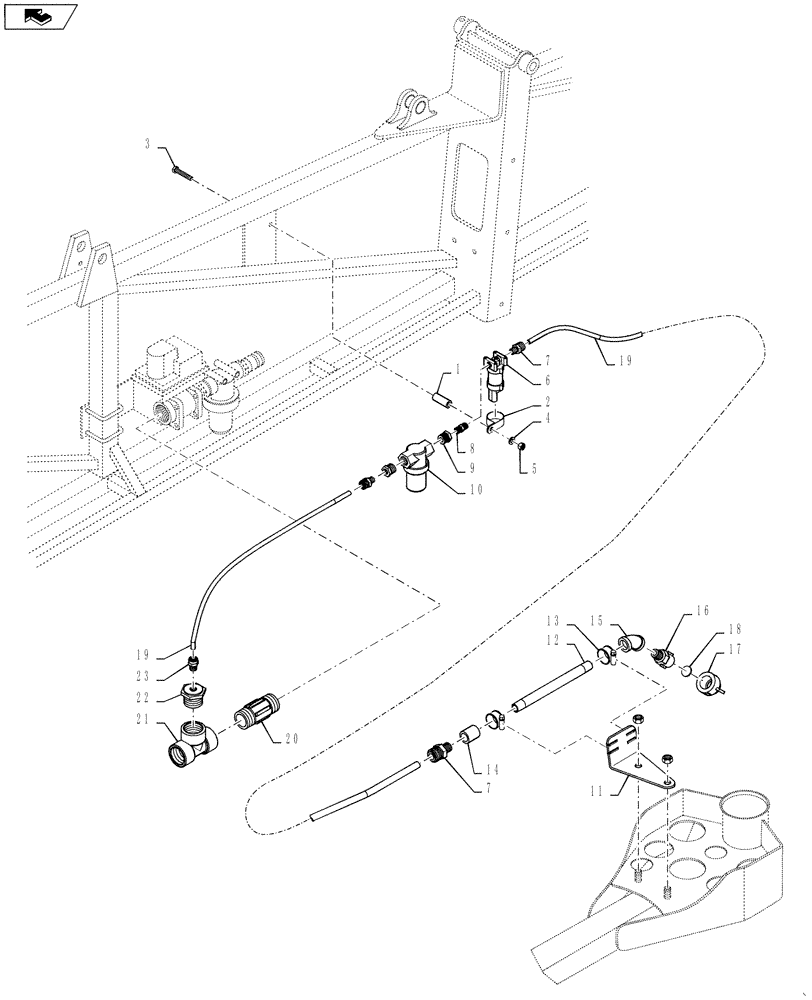

Схема запчастей Case IH 4420 - (11-013[01]) - NOZZLE, FENCE ROW, 90 & 100, STANDARD FLOW, ASN Y9T026405 Options
23
22
20
5
14
8
10
17
11
home
7
18
9
1
16
3
13
12
2
7
19
15
19
4
21
6

Артикул

Название

Примечание

Количество

1

BN300892

TUBE

SPACER, 3/8 BOLT

2шт.

2

515-23365

CLAMP,1 7/16", Insul, 3/8" Bolt

2шт.

3

BN50272

BOLT

3/8-16 X 2.75, Stainless Steel

2шт.

4

BN50146

WASHER,3/8", Stainless

2шт.

5

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

6

343778A1

SOLENOID

VALVE, 1/4" NPT

2шт.

7

BN2399403

ADAPTER

TUBE

6шт.

8

86986808

NIPPLE

1/4" Short, Poly

2шт.

9

BN304521

REDUCER

BUSHING, 1/2 X 1/4

4шт.

10

87565152

FILTER STRAINER,1/2"x 1/2"Clear Bowl Strainer w/50 Mesh Screen

.50FP,50MESH,PP 01

2шт.

See Fig 11-013(04) For Service Parts Breakdown

1шт.

11

84235803

MOUNT

2шт.

12

BN313361

NIPPLE,1/4" NPT x 6mm SS

NIPPLE

2шт.

13

BN324022

HOSE CLAMP

##8, Stainless Steel

4шт.

14

BN73015

COUPLING

1/4" NPT SS FULL

2шт.

15

84235806

PIPE FITTING

45 DEG, 1/4-18 FNPT, SS

2шт.

16

84223253

ADAPTER

NOZZLE-.25MP,POLY

2шт.

17

BN74619

CAP

W/GASKET

2шт.

18

BN69558

PLUG

SPRAYTIP, SS

2шт.

19

BN2292088

AIR INTAKE TUBE

3/8 BLACK

53.5шт.

20

BN323762

NIPPLE

1.25 X 4 , POLY

2шт.

21

BN73662

TEE

1-1/4", Poly

2шт.

22

BN320968

BUSHING,1-1/4" MPT x 3/8" FPT Reducing Bushing

1.25 X .375, POLY

2шт.

23

BN2399412

ADAPTER

Tube MC38038

2шт.

24

NSS

NOT SOLD SEPARAT

ELECTRICAL GROUP, Fence Row

1шт.

See Fig. 12-015

1шт.

Выбрано товаров: 26
