Запчасти Case IH 4420 (11-009[01]) - NOZZLE GROUP, LEFT BOOM, 90, FENCE ROW, BSN Y9T026406 Options

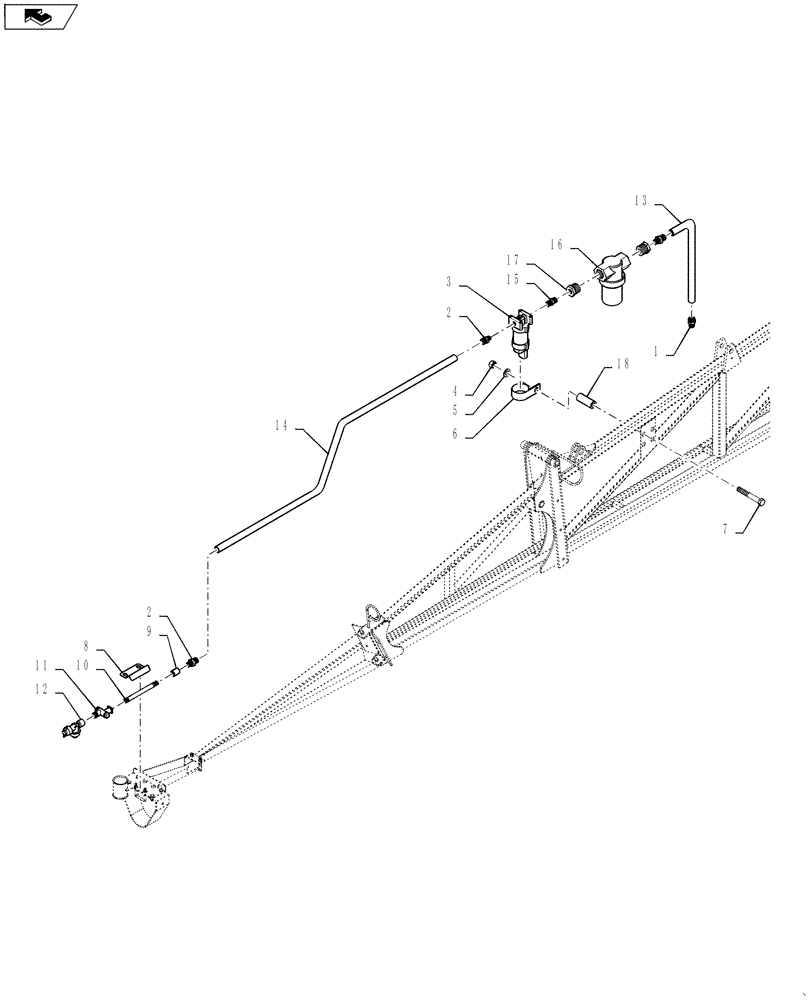

Схема запчастей Case IH 4420 - (11-009[01]) - NOZZLE GROUP, LEFT BOOM, 90, FENCE ROW, BSN Y9T026406 Options
7
15
12
3
16
17
14
4
5
home
2
9
10
13
2
1
6
11
18
8

Артикул

Название

Примечание

Количество

1

BN2399412

ADAPTER

Tube MC38038

1шт.

2

BN2399403

ADAPTER

1/4" MPT x 3/8" OD Tube, Push Lock Fitting

3шт.

3

343778A1

SOLENOID

valve, 1/4" NPT

1шт.

4

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

1шт.

5

BN50146

WASHER,3/8", Stainless

1шт.

6

515-23365

CLAMP,1 7/16", Insul, 3/8" Bolt

1шт.

7

BN50272

BOLT

3/8-16 X 2.75, Stainless Steel

1шт.

8

86986105

CLAMP

Plate, Nozzle

1шт.

9

BN73015

COUPLING

1/4" NPT SS Full

1шт.

10

BN313361

NIPPLE,1/4" NPT x 6mm SS

NIPPLE

1шт.

11

BN313256

NOZZLE INJECTION

W/SWIVEL

1шт.

12

BN313255

NOZZLE INJECTION

W/CHECK VALVE

1шт.

13

BN322073

TUBE

BLACK, 3/8 X 36"

1шт.

14

BN313230

TUBE

BLACK, 3/8 X 220

1шт.

15

86986808

NIPPLE

1/4" Short, Poly

1шт.

16

87565152

FILTER STRAINER,1/2"x 1/2"Clear Bowl Strainer w/50 Mesh Screen

1/2" FP, 50 Mesh, Poly

2шт.

See Fig 11-013(04) For Service Parts Breakdown

1шт.

17

BN304521

REDUCER

1/2 x 1/4 Red, Poly

2шт.

18

BN300892

TUBE

spacer, 3/8 Bolt

1шт.
