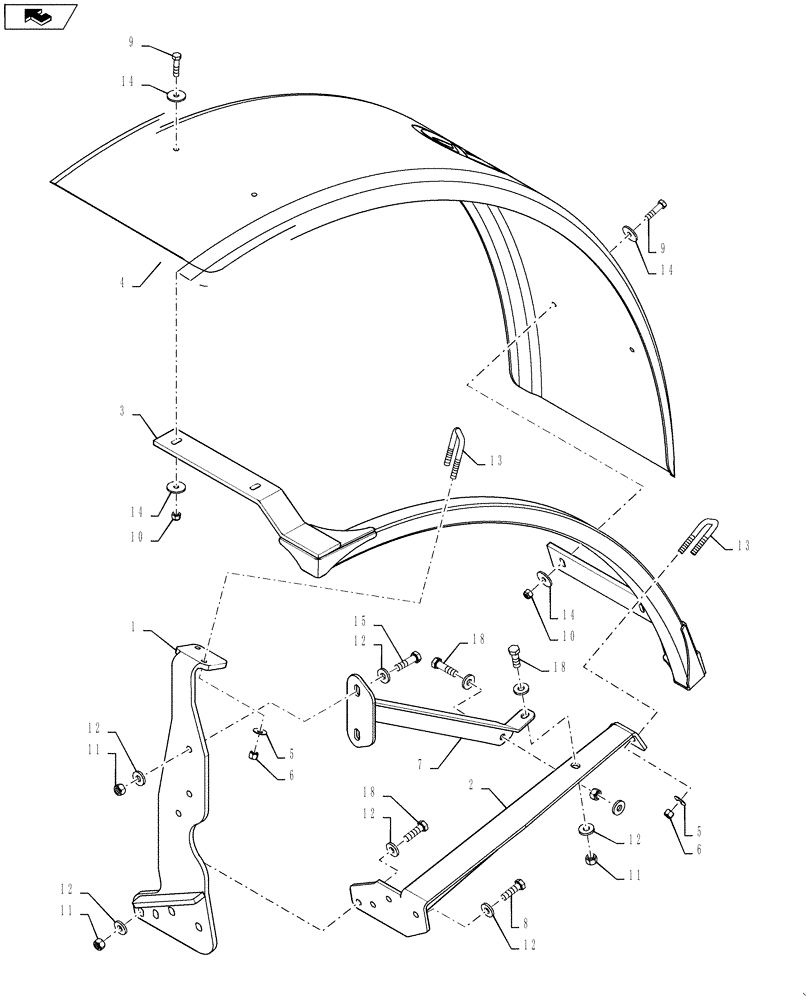

Запчасти Case IH 4420 (11-002) - FENDER ASSEMBLY, RH Options

1

87268334

SUPPORT

Mount, Fender RH

1шт.

2

87268366

BRACKET

Mount, Fender, Lower, RH

1шт.

3

86986713

FRAME

Fender

1шт.

4

87665204

FENDER

long, holes

1шт.

5

1994980C1

BELLEVILLE WASHER

Belleville, M10

4шт.

6

88902

NUT,3/8"-16

4шт.

7

87268377

CROSSMEMBER

Fender RH

1шт.

8

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

2шт.

9

BN50260

BOLT,3/8"-16 x 1-1/2", Stainless Steel

4шт.

10

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

11

100038

NUT,M12 x 1.75, Cl 8

6шт.

12

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

12шт.

13

BN319919

U-BOLT

2.06 ID x 2-3/4 x 3/8

2шт.

14

BN325184

WASHER

3/8, FW, SS, HVY, SPEC #MS815

8шт.

15

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

2шт.

18

86980422

BOLT,Hex, M12 x 35mm, Cl 8.8

M12-1.75 X 35, HH, 8.8 DOR

4шт.
