(09-099) - BOOM MANIFOLD BREAKDOWN, 7 SECTION BOOM, STANDARD AND LO-FLOW, 2" FLANGE X 1" FLANGE

Запчасти Case IH 4420 (09-099) - BOOM MANIFOLD BREAKDOWN, 7 SECTION BOOM, STANDARD AND LO-FLOW, 2" FLANGE X 1" FLANGE Liquid Plumbing

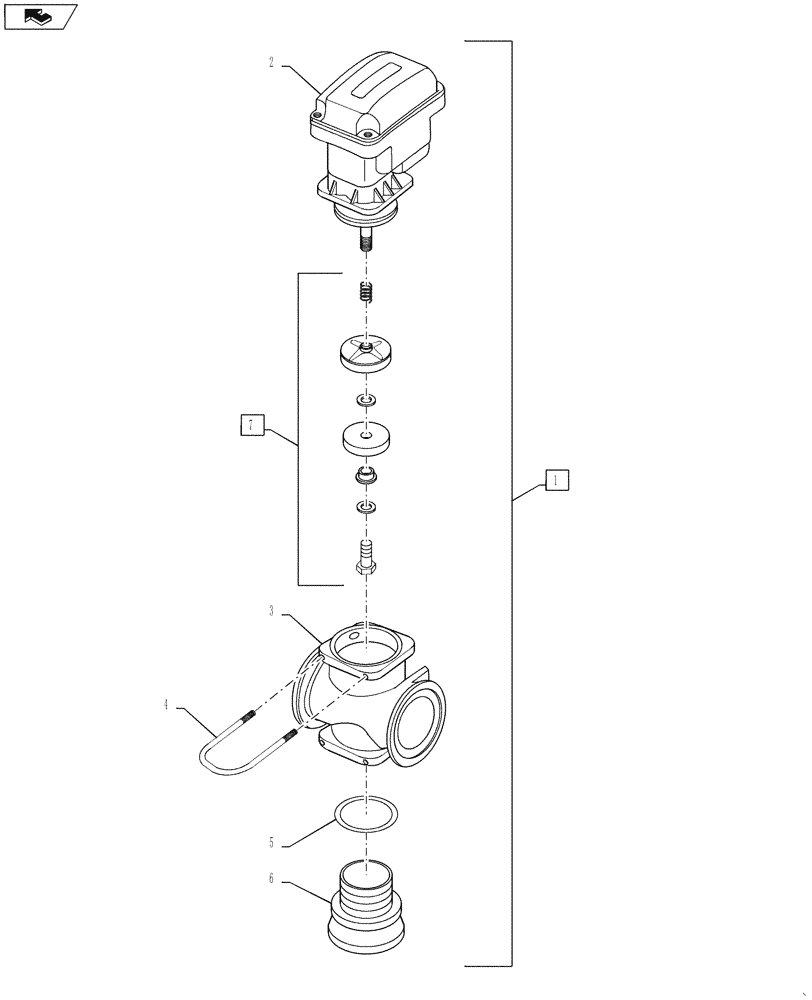

Схема запчастей Case IH 4420 - (09-099) - BOOM MANIFOLD BREAKDOWN, 7 SECTION BOOM, STANDARD AND LO-FLOW, 2" FLANGE X 1" FLANGE Liquid Plumbing
2
5
7
3
4
home
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87632830

SHUT-OFF VALVE

Electric Plunger, 2.2" Flange x 1" Flange, 3/4" Full Port, Poly

1шт.

2

87658829

MOTOR-PUMP

Assembly

1шт.

87658829R

REMAN-HYD MOTOR

4420 (8/06-9/11)

1шт.

87658829C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

3

87271157

BODY

4-Way, Poly

1шт.

4

87271158

CLIP

2шт.

5

87271159

O-RING

1шт.

6

87271160

OUTLET

1шт.

7

87271161

PLUNGER

Kit, Seat

1шт.
