Запчасти Case IH 4420 (09-098) - BOOM MANIFOLD BREAKDOWN, 7 SECTION BOOM, STANDARD FLOW, INNER BOOM SECTION CONTROL, 2.2" FLANGE X 2" FLANGE Liquid Plumbing

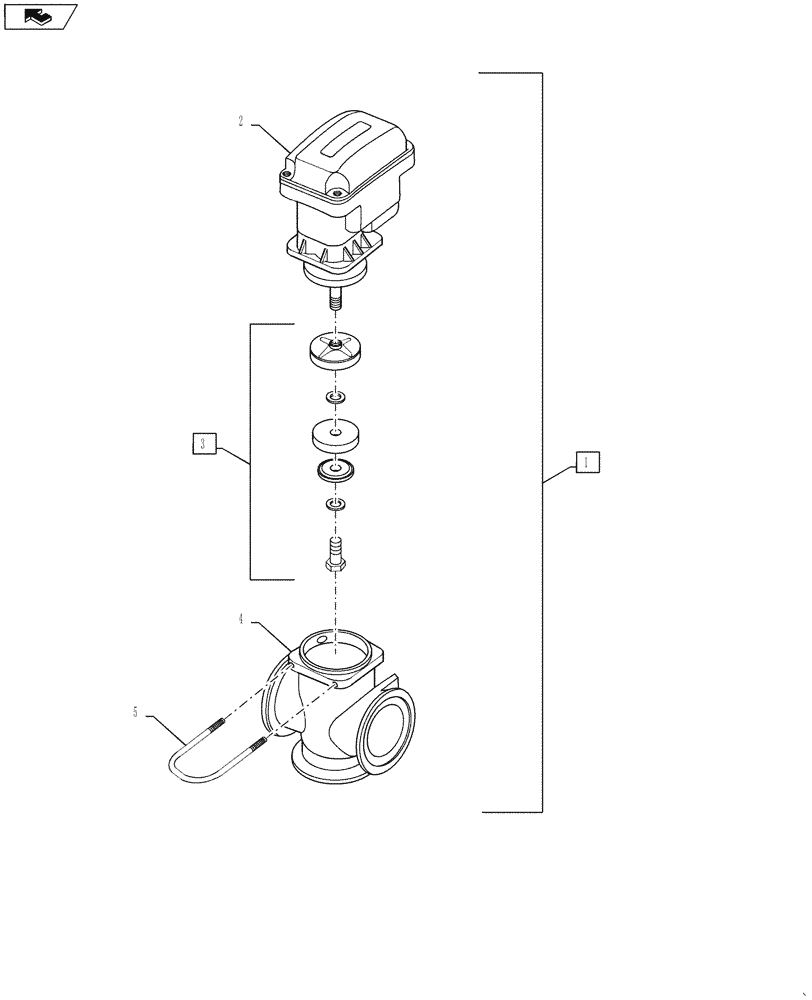

Схема запчастей Case IH 4420 - (09-098) - BOOM MANIFOLD BREAKDOWN, 7 SECTION BOOM, STANDARD FLOW, INNER BOOM SECTION CONTROL, 2.2" FLANGE X 2" FLANGE Liquid Plumbing
1
5
home
2
3
4

Артикул

Название

Примечание

Количество

1

87624338

SHUT-OFF VALVE

"T" Style, Plunger, 2.2"Flange Port x 2" Flange Port x 2" Flange Port

1шт.

2

87658830

MOTOR-PUMP

1шт.

3

87658834

SERVICE KIT

High Flow Plunger

1шт.

4

87658832

VALVE BODY

3 Port, "T" Style

1шт.

5

87658833

CLIP

High Flow Motor

1шт.

14464481

O-RING,0.139" Thk x 1.984" ID, -226, Cl 7, 75 Duro

Valve Motor Seal, Located Between Motor Ref 2 And Valve Body Ref 4, Not Shown

1шт.

Выбрано товаров: 6
