Запчасти Case IH 4420 (09-092) - HIGH VOLUME PLUMBING, RH - LH WING Liquid Plumbing

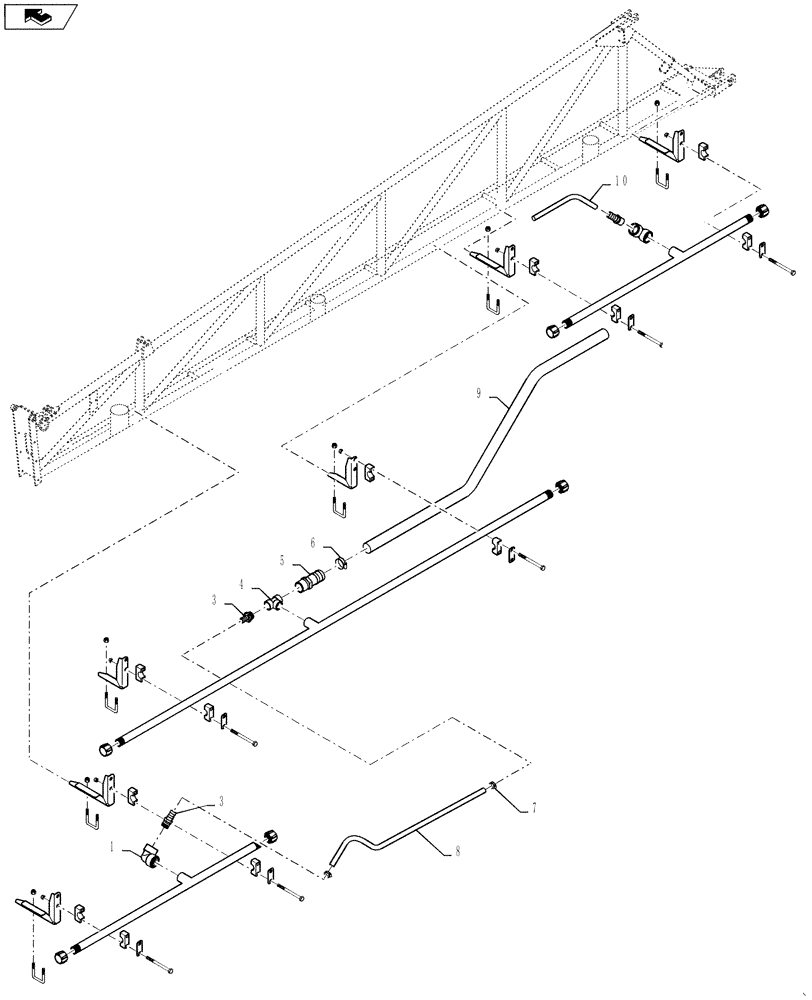

Схема запчастей Case IH 4420 - (09-092) - HIGH VOLUME PLUMBING, RH - LH WING Liquid Plumbing
3
1
10
9
6
7
4
5
8
home
3

Артикул

Название

Примечание

Количество

1

BN313202

ELBOW

1-1/4" NPT, 90°, Poly

2шт.

3

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb, Poly

3шт.

4

BN73662

TEE

1-1/4", Poly

1шт.

5

BN2294412

FITTING

Hosebarb, 1.25 NPT x 1.50 HB

1шт.

6

BN310448

HOSE CLAMP

#28, Stainless Steel

2шт.

7

BN310447

HOSE CLAMP

#20, Stainless Steel

3шт.

8

BN318054

HOSE,1.00" ID x 70.00"

EPDM

1шт.

9

BN318053

HOSE,1.50" ID x 72.00"

EPDM

1шт.

10

BN318052

HOSE,1.00" ID x 37.00"

EPDM

1шт.

Выбрано товаров: 9
