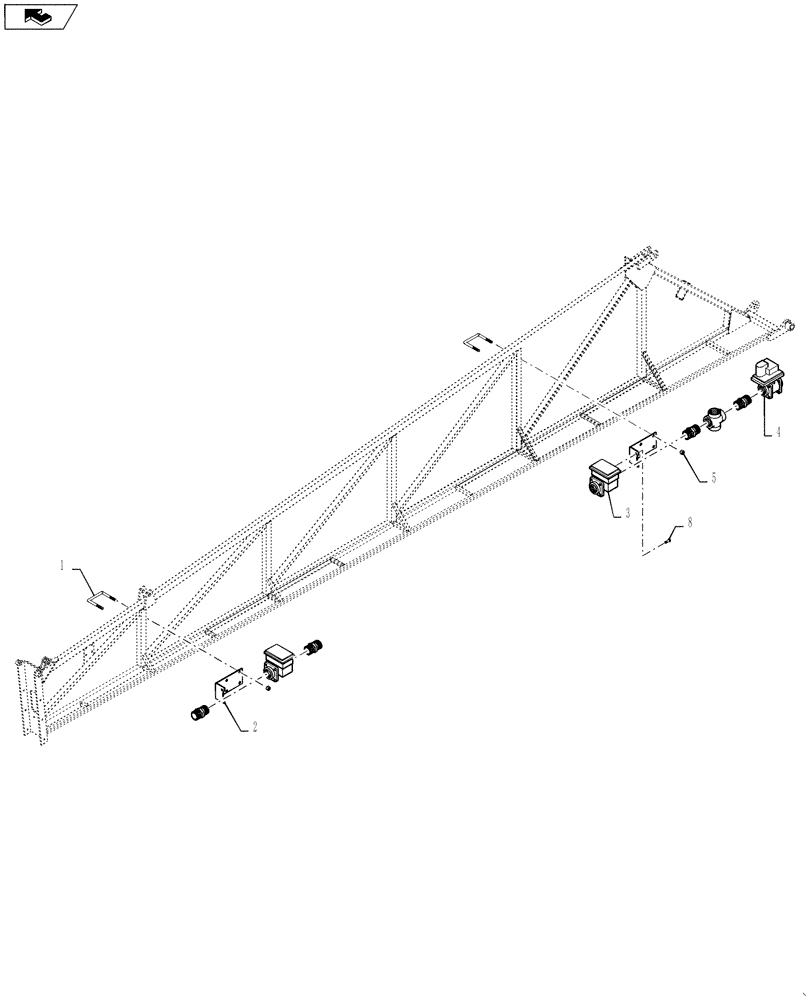

Запчасти Case IH 4420 (09-089) - BOOM, RH - LH CONTROL VALVES Liquid Plumbing

1

BN319919

U-BOLT

2.06 ID x 2-3/4 x 3/8

4шт.

2

BN318032

VALVE

MOUNT, BALL

2шт.

3

BN316588

VALVE

11/2 ELEC. KZCO

2шт.

4

87268179

VALVE

1.25" Ball, Electric

2шт.

See Fig 09-004 For Service Parts Breakdown

1шт.

5

BN50062

LOCK NUT,3/8"-16, Stainless Steel

8шт.

8

86982113

BOLT,Hex, M10 x 110mm, SST

M10 X 110 SS HEX

4шт.
