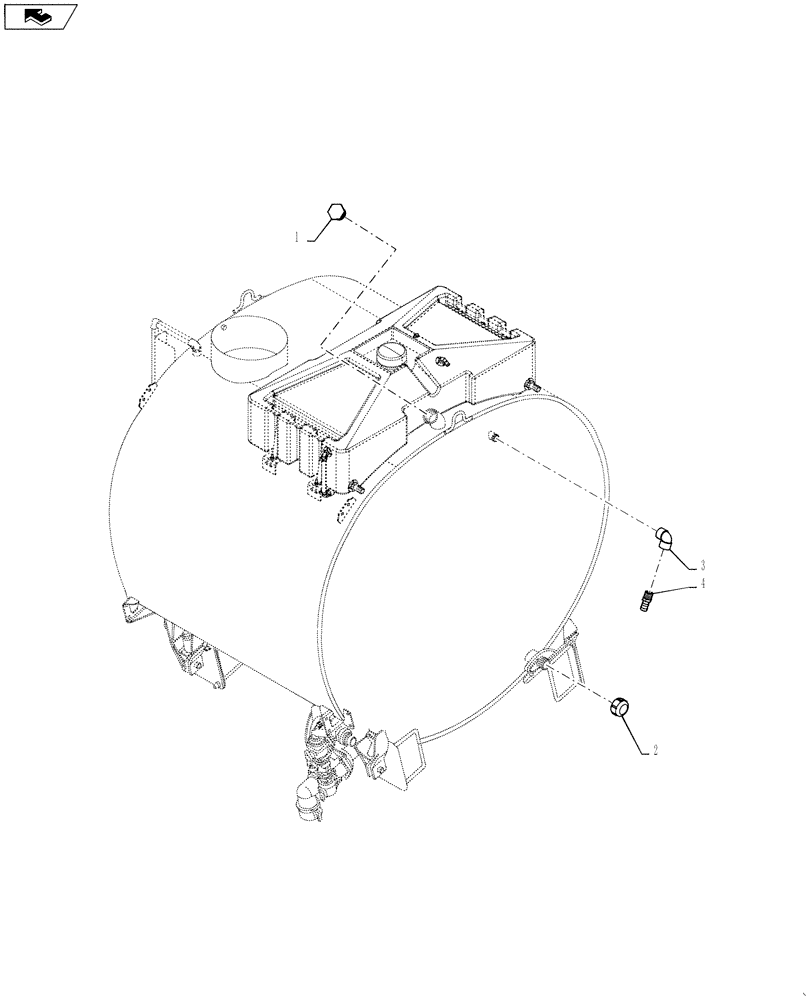

Запчасти Case IH 4420 (09-088) - REAR TANK PLUMBING, RINSE Liquid Plumbing

1

BN73794

PLUG,2" Male NPT, Poly

2" Poly Pipe

1шт.

2

BN2293320

CAP

2" Poly

1шт.

2a

87272500

GASKET

2" sparge tube

1шт.

Associated Part of Cap, 2" Poly, P/N BN2293320

1шт.

3

BN73742

ELBOW

90D, X 1 POLY

1шт.

4

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

1шт.
