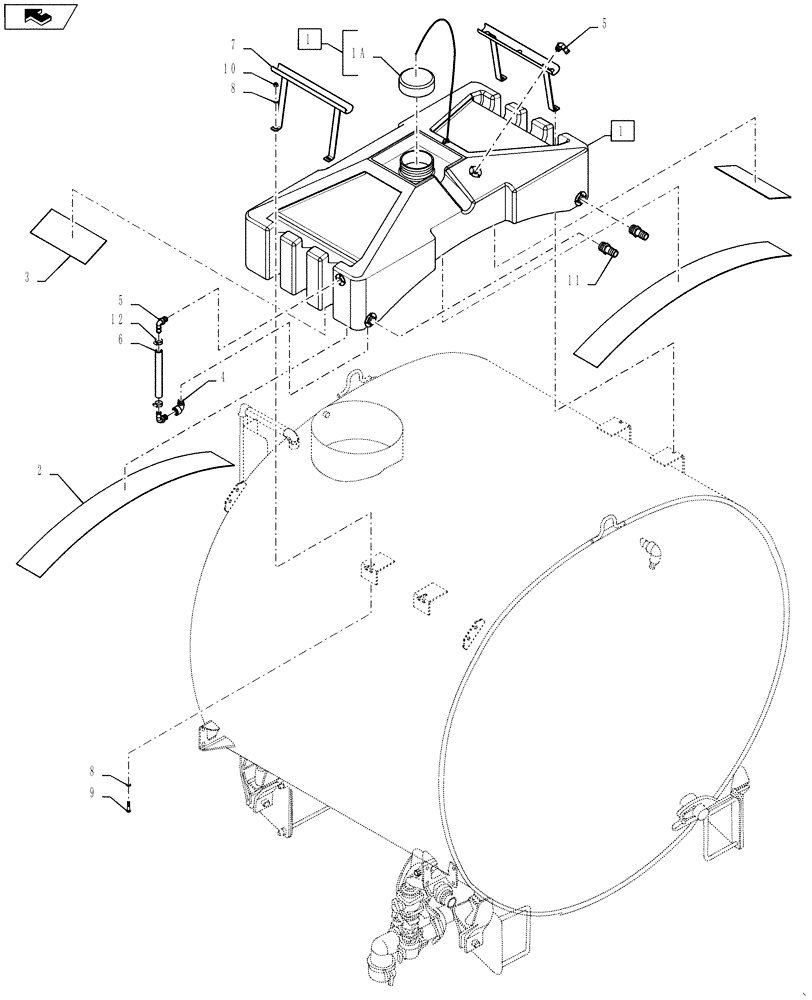

Запчасти Case IH 4420 (09-087) - RINSE TANK GROUP, PLUMBING & INST Liquid Plumbing

1

BN321007

TANK

top mount, eliptical, 70 gallon

1шт.

1a

BN314276

COVER

(35 Gallon Poly Tank)

1шт.

Service Parts For Ref. 1

1шт.

2

87380012

RUBBER STRIP

Mat, .51 X 6 X 1/8

2шт.

3

87380016

RUBBER STRIP

Mat, .14 x 6 x 1/8

2шт.

4

BN73566

ELBOW,3/4" Male NPT x 3/4" Female NPT, Poly

3/4" MPT x 3/4" FPT, Poly

1шт.

5

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

3шт.

6

BN322785

FLEXIBLE HOSE,0.75" ID x 11.00"

Clear

1шт.

7

BN323384

BRACKET

Holddown Weldment, Rinse Tank

2шт.

8

BN50146

WASHER,3/8", Stainless

8шт.

9

BN50948

BOLT,Hex, 3/8" - 16 x 2 1/2", Stainless

3/8-16 X 2-1/2", Stainless Steel

4шт.

10

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

11

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

2шт.

12

BN310446

HOSE CLAMP

#12, Stainless Steel

2шт.
