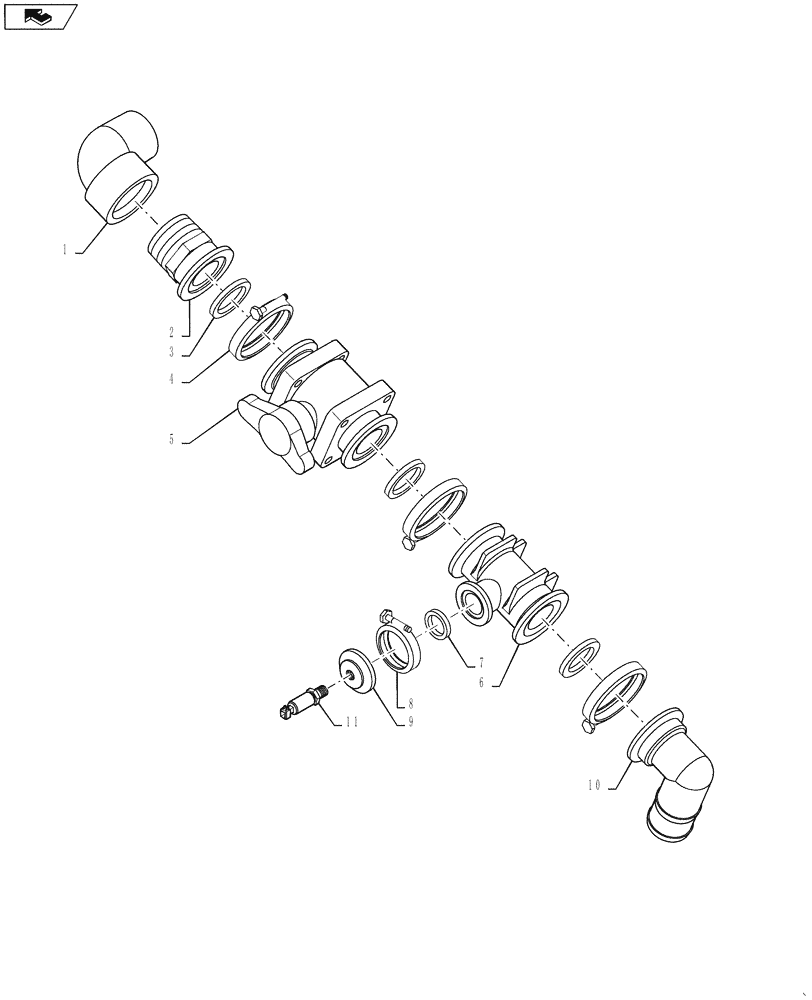

Запчасти Case IH 4420 (09-085) - TANK SPARGE PLUMBING Liquid Plumbing

1

BN73785

ELBOW

90-STREET 2" POLY

1шт.

2

BN303185

ADAPTER,2" Flange x 2" Male NPT, Poly

2" Flange x 2" NPT

1шт.

3

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

3шт.

4

BN303199

CLAMP,2" Flange

2" Standard Flange

3шт.

5

BN304328

VALVE,2" FP Valve w/C-Flng & T Handle

Ball, 2" Flange, With Handle

1шт.

6

BN303191

TEE,2" Flange x 2" Flange x 1" Flange, Poly

2" Flange x 2" Flange x 1" Flange, Poly

1шт.

7

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1" x 7/32" thick

1шт.

8

BN303203

CLAMP,1" Flange

1" Flange

1шт.

9

405793A1

PLUG,1" Flange Plug with 1/4" FPT

1" Manifold x 1/4" FPT, Poly

1шт.

10

405781A1

FITTING,2" Flange x 2" 90 Degree Hose Barb Elbow

2" Flange X 2" Hose Barb, Poly

1шт.

11

84201517

TRANSDUCER

Pressure, Sparge PSI

1шт.
