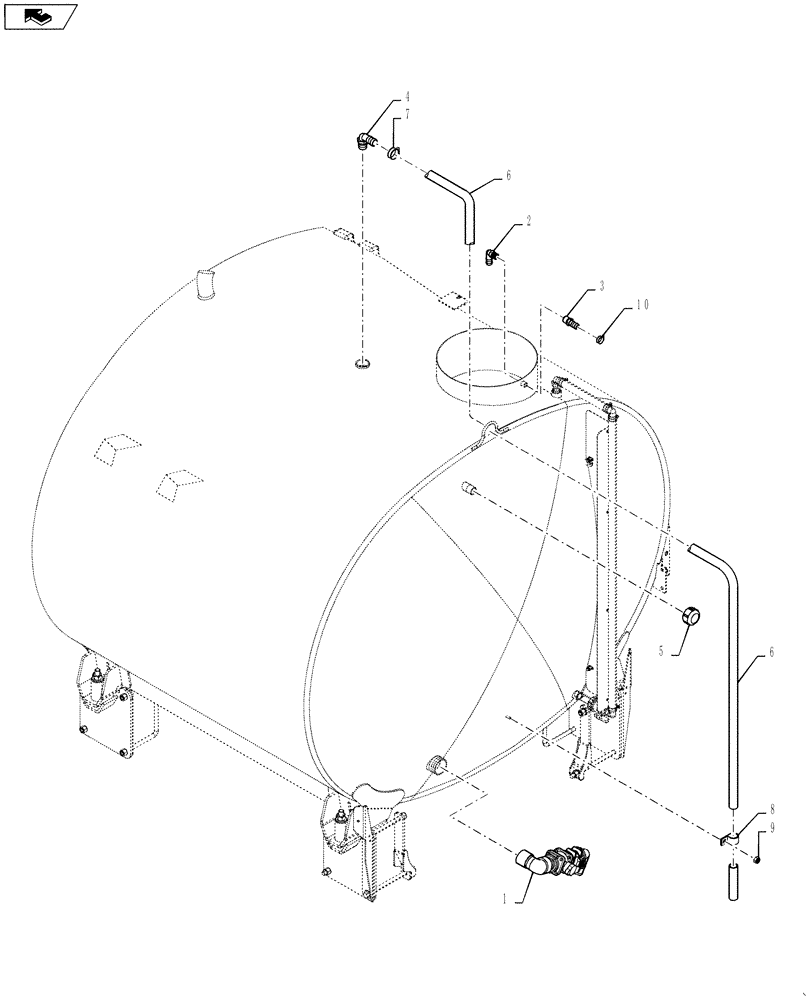

Запчасти Case IH 4420 (09-084) - 1200 GALLON TANK, FRONT PLUMBING Liquid Plumbing

1

NS

NOT SERVICED

Plumbing, Bottom Tank

1шт.

See Fig. 09-083

1шт.

2

BN73412

ELBOW,90 Degree,1/4" MPT x 1/4" HB

1/4" NPT x 1/4" Hose Barb, Poly

1шт.

3

BN53433

FITTING

1/4" NPT x 1/4" Hose Barb, Stainless Steel

1шт.

4

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

1шт.

5

BN73606

CAP

1" NPT, Poly Pipe

1шт.

6

87268177

HOSE,38.10 mm ID x 120 mm

Kaniflex

1шт.

7

BN310448

HOSE CLAMP

#28, Stainless Steel

1шт.

8

515-23365

CLAMP,1 7/16", Insul, 3/8" Bolt

1шт.

9

86528579

NUT,M8 x 1.25

1шт.

10

87485000

CLAMP,0.25" - 0.62"

#4, Stainless Steel

1шт.
