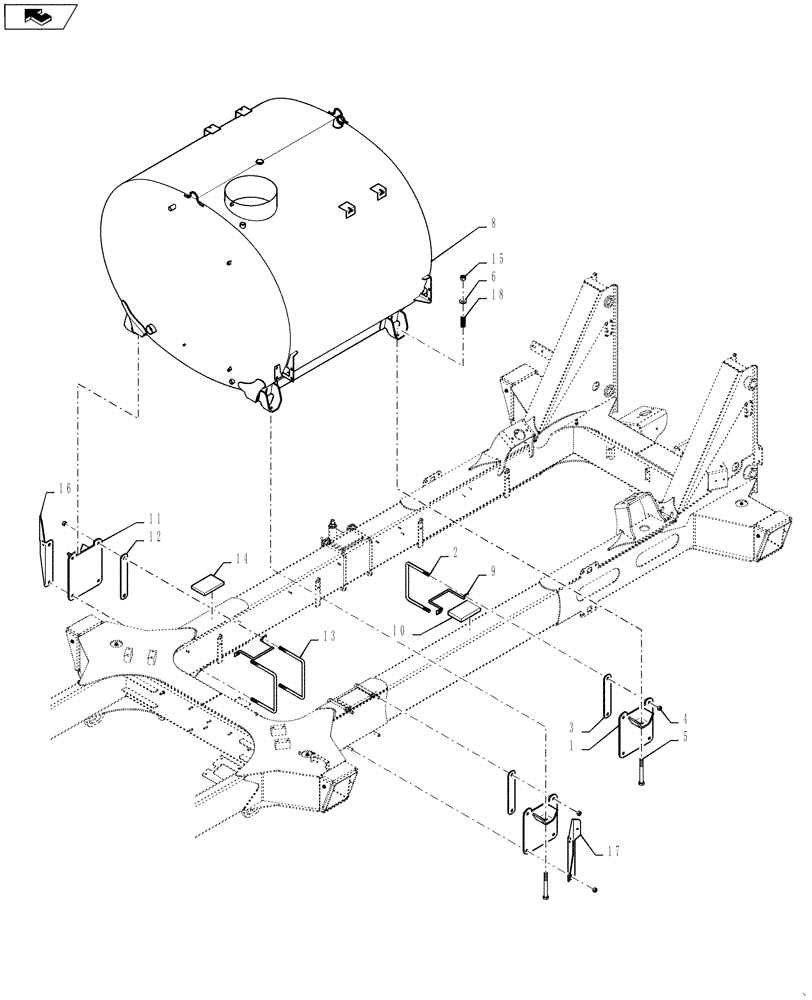

Запчасти Case IH 4420 (09-082) - TANK MOUNT GROUP Liquid Plumbing

1

87269351

SUPPORT

Mount, Rear Tank

2шт.

2

BN325918

U-BOLT

M16 X 256 ID X 187 IL

4шт.

3

BN325921

SPACER

FRAME

4шт.

4

412066

NUT,M16 x 2.0, Cl 8

16шт.

5

87310605

BOLT,M20 x 180, 10.9, DOR

4шт.

6

87310608

WASHER,22mm ID x 44mm OD x 5mm Thk

22 x 44 x 5 mm, HDN, DOR

4шт.

8

87268187

TANK

1200 Gallon, Parts

1шт.

8a

87270464

CAP

16" With 10" Fill

1шт.

Not Shown

1шт.

9

343010A1

STRAP

harness, tank pad 778D

4шт.

8b

BN2391314-001

GASKET

For 16" Cap

1шт.

Service Parts for Ref. 8

1шт.

10

343009A1

PAD

pad, mount, tank 778D

2шт.

11

87269352

BRACKET

Mount, Front Tank

2шт.

12

343013A1

PLATE

FRONT SPACER 778D

2шт.

13

343008A1

U-BOLT

M16 x 10.5" x 6"

4шт.

14

343014A1

BASE

pad, mount, tank front

2шт.

15

264031

NUT,M20 x 2.5, Cl 10

4шт.

16

BN325933

SUPPORT

DRIVE HOSES, RH

1шт.

17

BN325932

SUPPORT

DRIVE HOSES, LH

1шт.

18

BN312850

SPRING

1" ID x 4" Lg-Die

4шт.
