Запчасти Case IH 4420 (09-080) - PUMP, HYPRO, STANDARD FLOW Liquid Plumbing

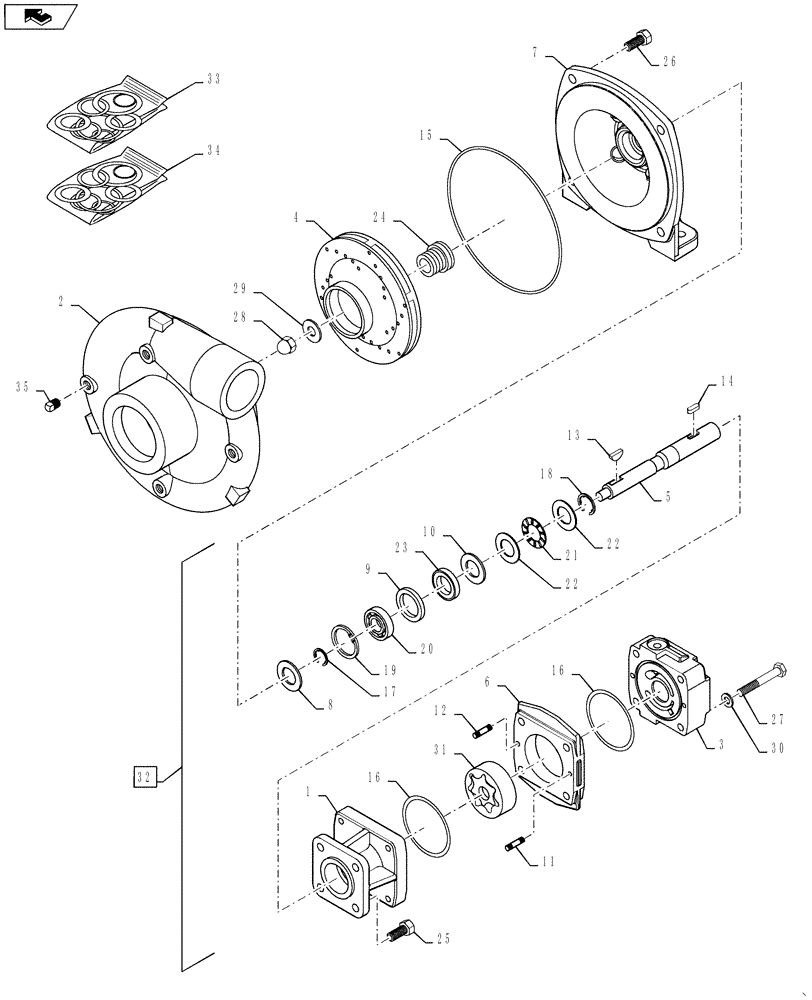

Схема запчастей Case IH 4420 - (09-080) - PUMP, HYPRO, STANDARD FLOW Liquid Plumbing
13
8
19
16
home
21
24
15
11
28
25
32
3
12
1
23
14
34
7
9
10
22
6
35
2
18
5
33
20
26
27
29
31
16
30
4
22
17

Артикул

Название

Примечание

Количество

0

87268178

PUMP

Hypro, Standard Flow

1шт.

1

84270020

BODY

Body Assembly, Motor Pump

1шт.

2

87610599

CASING

pump, hydraulic centri 9306c

1шт.

3

84270029

COVER ASSY

End, Motor

1шт.

4

344031A1

IMPELLER

Hypro Pump

1шт.

5

84270017

SHAFT

Shaft, Motor Pump

1шт.

6

84270021

HOUSING

Housing, Gerotor - Pump

1шт.

7

84270008

FLANGE

Flange, Mounting, Pump

1шт.

8

4194

RING

slinger

1шт.

9

BN98261

SHAFT

Spacer

1шт.

10

BN98263

SEAL

Spacer

1шт.

11

84270023

PIN

Pin, Dowel, Housing, Pump

1шт.

12

84270022

PIN

Pin, Dowel, Housing, Pump

1шт.

13

6059

KEY

Hypro* motor woodruff

1шт.

14

6060

ROLL PIN

1шт.

15

NSS

NOT SOLD SEPARAT

O-Ring #165

1шт.

16

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

17

6057

SNAP RING

Hypro* pump - pump side

1шт.

18

87578620

SNAP RING

pump hyd motor side, Hypro #9303c

1шт.

19

BN98259

RING

Retaining

1шт.

20

NSS

NOT SOLD SEPARAT

Bearing, Ball

1шт.

21a

87577677

BEARING ASSY

pump centri hyd

1шт.

Includes Refs. 21 and 22

1шт.

21

NSS

NOT SOLD SEPARAT

Bearing, Thrust

1шт.

22

NSS

NOT SOLD SEPARAT

Bearing Race, Thru

1шт.

23

NSS

NOT SOLD SEPARAT

Seal, Std Rot

1шт.

24

NSS

NOT SOLD SEPARAT

Seal, Mechanical, 5/8"

1шт.

25

84270018

BOLT

Bolt, Motor Body, Pump

4шт.

26

84270010

BOLT

Bolt, Housing, Pump

4шт.

27

84270032

BOLT

Bolt, Motor cover, Pump

4шт.

28

BN53693

NUT

Impeller #3

1шт.

29

84272048

WASHER

Washer, Motor Cover, Pump

1шт.

30

84270031

WASHER

Washer, Motor End Plate, Pump

4шт.

31

84270026

GEROTOR

Gerotor, Pump

1шт.

32

87265475

PUMP

HYD. Motor, Hypro

1шт.

33

87265476

REPAIR KIT

Kit, Hypro Pump

1шт.

Includes Refs. 15 and 24

1шт.

34

BN311827

SEAL KIT

Shaft

1шт.

Includes Refs. 16, 20 and 23

1шт.

35

4187

DRAIN PLUG

4шт.

Выбрано товаров: 40
