Запчасти Case IH 4420 (09-075) - PSI RELIEF PLUMBING Liquid Plumbing

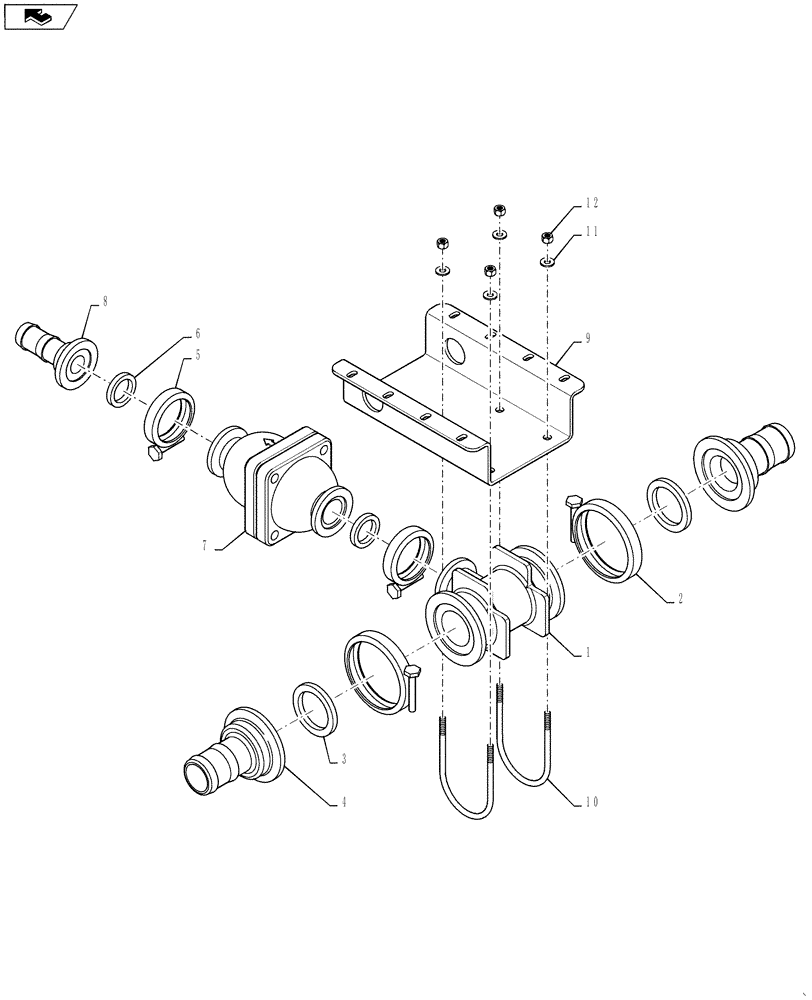

Схема запчастей Case IH 4420 - (09-075) - PSI RELIEF PLUMBING Liquid Plumbing
5
home
12
3
1
8
7
4
9
11
2
6
10

Артикул

Название

Примечание

Количество

1

BN303191

TEE,2" Flange x 2" Flange x 1" Flange, Poly

2" Flange x 2" Flange x 1" Flange, Poly

1шт.

2

BN303199

CLAMP,2" Flange

2" Standard Flange

2шт.

3

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

2шт.

4

434039A1

FITTING,2" Flange x 1-1/2" Hose Barb

2" Manifold x 1-1/2" Hose Barb, Poly

2шт.

5

BN303203

CLAMP,1" Flange

1" Flange

2шт.

6

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1" x 7/32" thick

2шт.

7

87268172

VALVE

Check 1" MFD 100PSIG

1шт.

8

BN304319

FITTING,1" Flange x 1" Hose Barb, Poly

1" Flange X 1" Barb

1шт.

9

87265474

MOUNTING PLATE

RELIEF VALVE

1шт.

10

BN303201

U-BOLT

BOLT "U" 1/4 x 2.38R x 3.75

2шт.

11

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

12

280129

NUT,1/4"-20

4шт.

Выбрано товаров: 12
