Запчасти Case IH 4420 (09-074) - SUCTION PLUMBING, 2" Liquid Plumbing

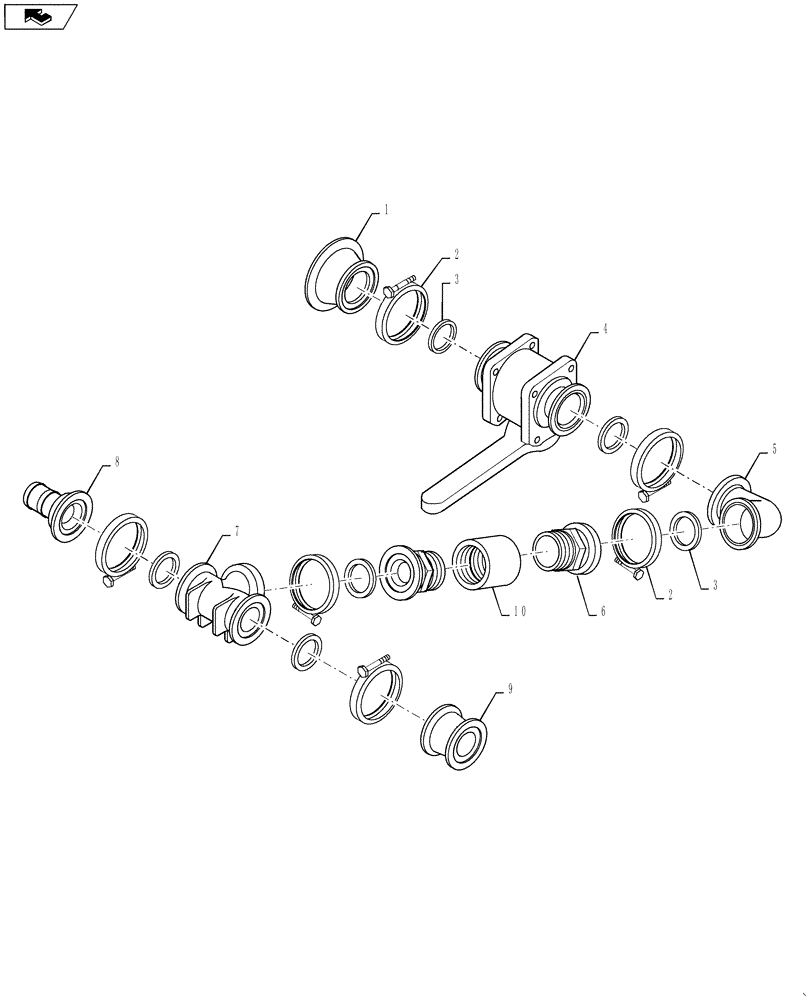

Схема запчастей Case IH 4420 - (09-074) - SUCTION PLUMBING, 2" Liquid Plumbing
3
home
4
1
5
9
7
3
6
2
10
2
8

Артикул

Название

Примечание

Количество

1

BN321072

REDUCER,3" Flange x 2" Full Port Flange, Poly

3" Flange x 2" Full Port Flange, Poly

1шт.

2

BN313773

CLAMP,2" Full Port

2" Flange

6шт.

3

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

6шт.

4

BN324057

VALVE,2" Full Port Flange x 2" Full Port Flange

2" Full Port Manifold, Poly

1шт.

5

BN316710

FITTING,90 Degree Elbow, 2" Full Port Flange x 2" Full Port Flange, Poly

ELBOW, 2" F. F. FULL PORT

1шт.

6

BN314241

MANIFOLD,2" Full Port Flange x 2" Male NPT, Poly

2" MPT x 2" Flange, Poly

2шт.

7

BN322550

TEE,2" Full Port Flange x 2" Full Port Flange x 2" Full Port Flange

2" Full Port Flange

1шт.

8

BN318600

FITTING,2" Full Flange x 2" Hose Barb, Poly

2" Full Flange X 2" Hose Barb, Poly

1шт.

9

BN322100

REDUCER,2" Full Port x 2" Reducer Flange

2" Full Port Flange X 2" Flange

1шт.

10

BN2403363

COUPLING,2", Poly

2" POLY

1шт.

Выбрано товаров: 10
