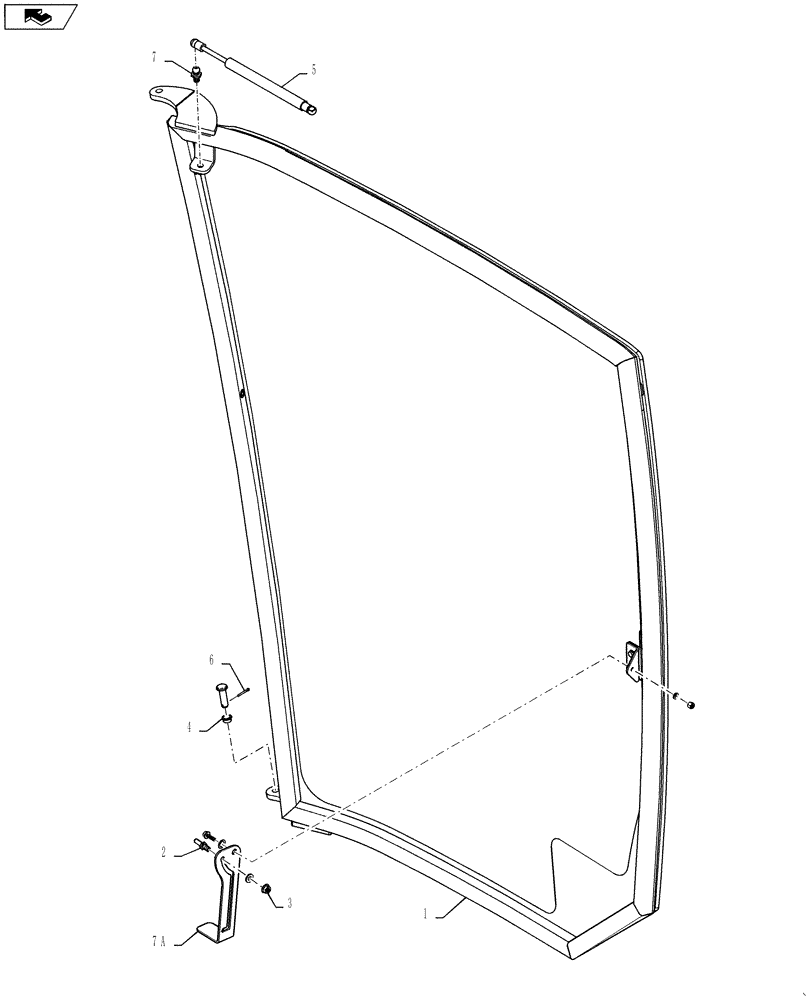

Запчасти Case IH 4420 (02-009[01]) - WINDOW GROUP Cab Exterior

1

389175A3

WINDOW ASSY

RH Door, See Fig 02-009(02) For Service Parts

1шт.

2

87423532

PIN

RH Door Catch

1шт.

3

86050303

NUT

M8 x 1.25, Flg, Cl 8

1шт.

4

87429877

BUSHING,12.01mm ID x 15.06mm OD x 8mm L

FLANGED

2шт.

5

87423389

DAMPER

GAS CYLINDER

1шт.

6

130003

COTTER PIN,3mm OD x 30mm OAL

1шт.

7

9849996

CLIP

Retainer Ball Stud

2шт.

7a

87418389

LATCH ASSY.

RH Door

1шт.

See Fig. 02-008

1шт.
