Запчасти Case IH 4420 (09-070) - VALVE GROUP CHEM/RINSE Liquid Plumbing

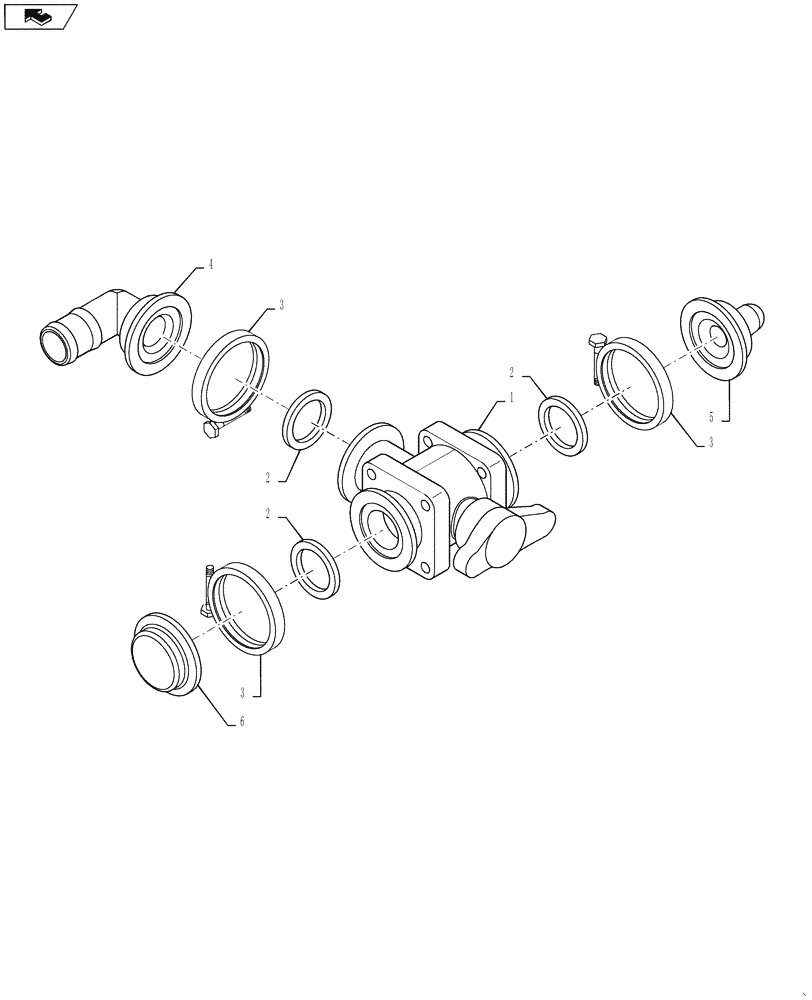

Схема запчастей Case IH 4420 - (09-070) - VALVE GROUP CHEM/RINSE Liquid Plumbing
3
3
4
2
home
2
1
2
5
3
6

Артикул

Название

Примечание

Количество

1

BN324998

VALVE

Ball, 2" Flange x 2" Flange

1шт.

2

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

3шт.

3

BN303199

CLAMP,2" Flange

2" Standard Flange

3шт.

4

BN304321

FITTING,2" Flange x 1-1/2" 90 Degree Hose Barb Elbow

2" Flange x 1 1/2" Hose Barb, Poly

1шт.

5

BN322003

FITTING,2" Flange x 1" 90 Degree Hose Barb Elbow

2" Flange x 1" Hose Barb

1шт.

6

86984085

PLUG,2" Flange Plug

2" Manifold

1шт.

Выбрано товаров: 6
