Запчасти Case IH 4420 (09-059[01]) - BOOM VALVE PLUMBING, 7 SECTION, BSN YBT029768 Liquid Plumbing

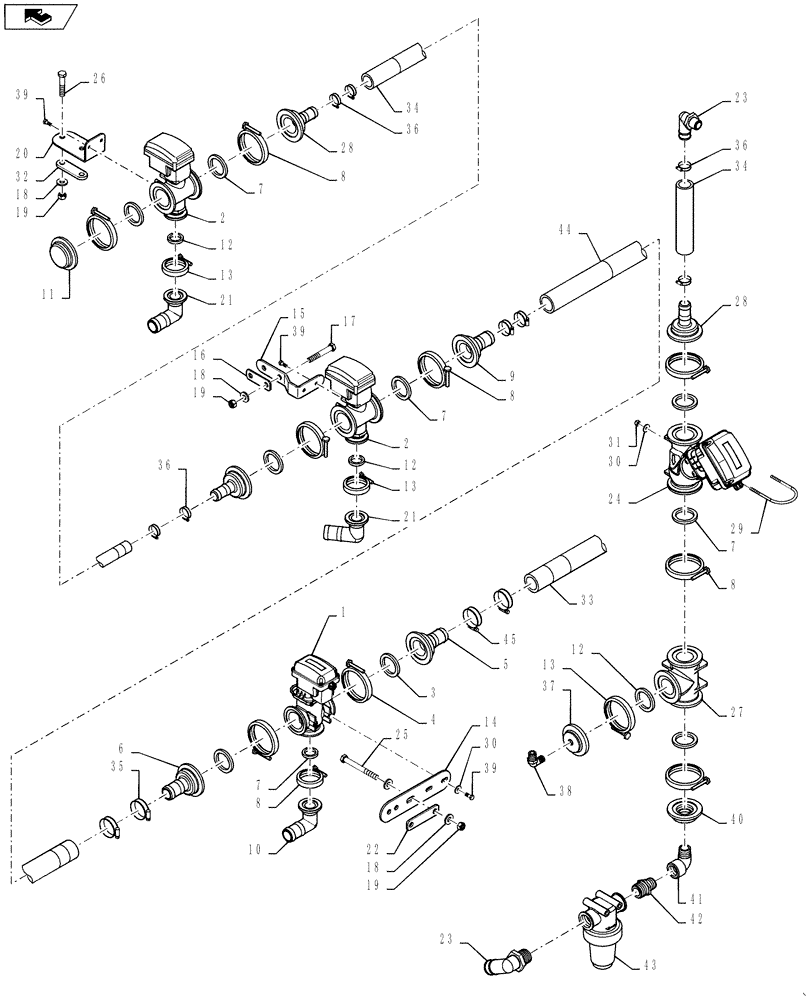

Схема запчастей Case IH 4420 - (09-059[01]) - BOOM VALVE PLUMBING, 7 SECTION, BSN YBT029768 Liquid Plumbing
19
36
24
26
22
42
3
45
8
home
29
25
18
40
18
8
34
18
28
21
8
33
39
1
8
27
34
11
2
5
35
38
23
43
17
9
7
30
19
19
7
37
7
2
13
6
31
13
41
39
32
20
4
21
10
30
44
7
12
13
39
14
15
12
36
16
28
12
36
23

Артикул

Название

Примечание

Количество

1

87624338

SHUT-OFF VALVE

"T" Style, Plunger, 2.2"Flange Port x 2" Flange Port x 2" Flange Port

2шт.

See Fig 09-098 For Service Parts Breakdown

1шт.

2

87632830

SHUT-OFF VALVE

Electric Plunger, 2.2" Flange x 1" Flange, 3/4" Full Port, Poly

4шт.

See Fig 09-099 For Service Parts Breakdown

1шт.

3

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

4шт.

4

BN313773

CLAMP,2" Full Port

2" Flange

4шт.

5

BN318600

FITTING,2" Full Flange x 2" Hose Barb, Poly

2" Full Flange X 2" Hose Barb, Poly

2шт.

6

BN322277

FITTING,2" Full Port Flange x 1-1/2" Hose Barb

2" Full Port Flange x 1-1/2" Hose Barb, Poly

2шт.

7

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

13шт.

8

BN303199

CLAMP,2" Flange

2" Standard Flange

13шт.

9

BN306901

FITTING,2" Flange x 1-1/2" Hose Barb, Poly

2" Flange x 1-1/2" Hose Barb, Poly

2шт.

10

BN303189

FITTING,2" Flange x 1-1/4" 90 Degree Hose Barb Elbow

2" Flange x 1-1/4" Hose Barb, Poly

2шт.

11

BN304317

PLUG,2" Flange, Poly

2" Manifold Flange

2шт.

12

BN303205

GASKET

1” Flange, EPDM

5шт.

13

BN303203

CLAMP,1" Flange

1" Flange

5шт.

14

87625607

MOUNT

BOOM VALVE

2шт.

15

87625608

MOUNTING PARTS

Boom Valve, Bent

2шт.

16

87628243

PLATE

1 1/2" Tube

2шт.

17

86980407

BOLT,Hex, M10 x 70mm, Cl 8.8

M10-1.5 X 70, 8.8, DOR

4шт.

18

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

16шт.

19

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

12шт.

20

87628244

MOUNT

BOOM VALVE, OUTER

2шт.

21

87575511

FITTING,1" Flange x 1-1/4" 90 Degree Hose Barb Elbow

90º, 1.0 FLB 1.25 HB, Poly

4шт.

22

87620862

PLATE

Backer, 2 1/2" Tube

2шт.

23

BN67315

FITTING,1" Male Thread x 1-1/4" 90 Degree Hose Barb

1" NPT x 1-1/4" Hose Barb, Poly

2шт.

24

87624339

SHUT-OFF VALVE

"Y" Style, Plunger, 2" Flange Ports

1шт.

See Fig 09-097 For Service Parts Breakdown

1шт.

25

86980410

BOLT,Hex, M10 x 100mm, Cl 8.8

M10 1.5 X 100, 8.8, DOR

4шт.

26

87341824

BOLT,Hex, M10 x 170mm, Cl 8.8

M10 x 55, 8.8, DOR

4шт.

27

BN303191

TEE,2" Flange x 2" Flange x 1" Flange, Poly

2" Flange x 2" Flange x 1" Flange, Poly

1шт.

28

BN306900

FITTING,2" Flange x 1-1/4" Hose Barb, Poly

2” Flange x 1 1/4" Hose Barb

5шт.

29

BN303201

U-BOLT

BOLT "U" 1/4 x 2.38R x 3.75

2шт.

30

BN50138

WASHER,1/4", SS

8шт.

31

BN55359

LOCK NUT,1/4"-20, SS

4шт.

32

BN308039

PLATE

Spacer

2шт.

33

84177787

HOSE,50.8mm ID x 390mm L

34шт.

34

BN321543

FLEXIBLE HOSE,1.25" ID BULK

26шт.

35

BN310448

HOSE CLAMP

#28, Stainless Steel

8шт.

36

BN320156

HOSE CLAMP

#24, Stainless Steel

10шт.

37

BN324133

PLUG,1" Flange x 1/4" Female NPT, Poly

1" Flange x 1/4" FPT, Poly

1шт.

38

BN73017

ELBOW

90, STREET, 1/4, SS

1шт.

39

BN52033

BOLT,1/4"-20 X 5/8", Stainless Steel

12шт.

40

344407A1

PLUG,2" Flange Plug with 3/4" FPT

2" Flange x 3/4" NPT, Poly

1шт.

41

BN73566

ELBOW,3/4" Male NPT x 3/4" Female NPT, Poly

3/4" MPT x 3/4" FPT, Poly

1шт.

42

BN73649

NIPPLE,1" x 3/4" Poly Reducing Nipple

1" x 3/4" Poly

1шт.

43

BN320072

FILTER STRAINER

1" NPT, 50 Mesh, Poly

1шт.

44

BN309785

HOSE

Bulk, 1.5"

38.7шт.

45

BN310449

CLAMP,50mm - 65mm

#32, Stainless Steel

8шт.

46

87021161

CLAMP,76.2mm, Coat, 8.7mm Bolt Hole, P Type

Closed, 76.2mm Insul 5/16 Bolt

2шт.

47

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

48

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

49

86980382

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

Выбрано товаров: 52
