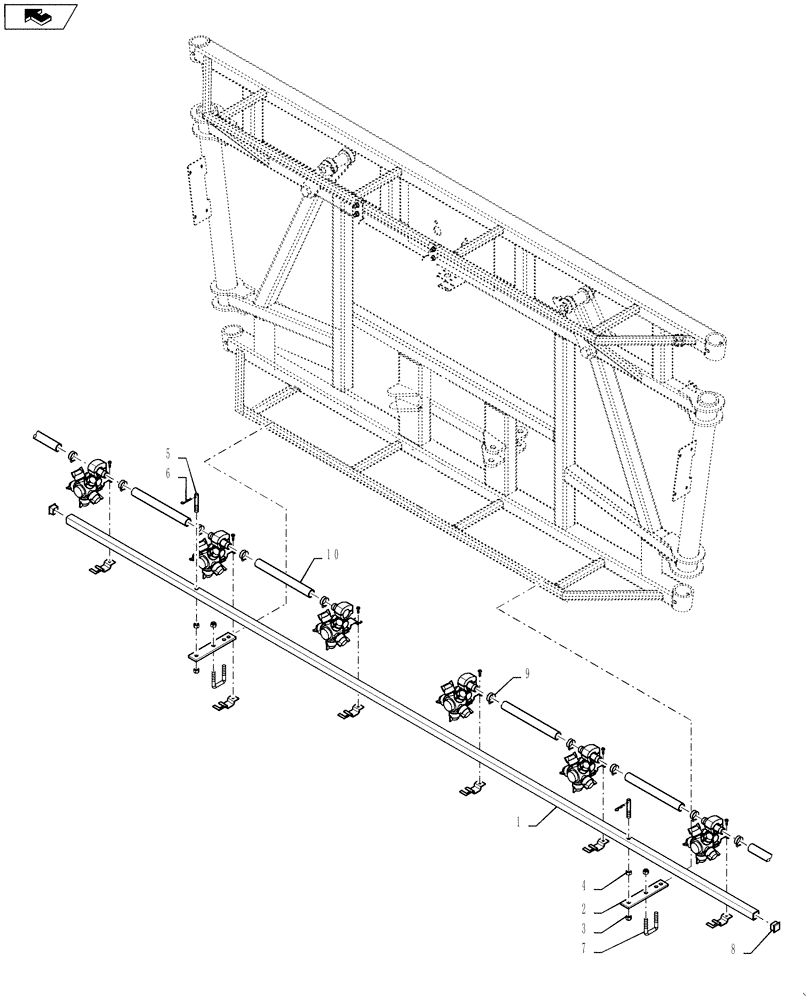

Запчасти Case IH 4420 (09-053) - BOOM, CENTER SECTION PLUMBING, 6 SECTION, LO-FLOW Liquid Plumbing

1

87268203

TUBE,25.40 mm OD x 2827 mm L

CENTER SECTION, BOOM

1шт.

2

BN67279

BRACKET

mount, dry boom

2шт.

3

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

6шт.

4

BN50064

NUT

3/8"-16, Stainless Steel

4шт.

5

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

2шт.

6

BN71006

COTTER PIN

1/8", #11

2шт.

7

BN319919

U-BOLT

2.06 ID x 2-3/4 x 3/8

2шт.

8

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

2шт.

9

BN310446

HOSE CLAMP

#12, Stainless Steel

10шт.

10

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

4шт.
