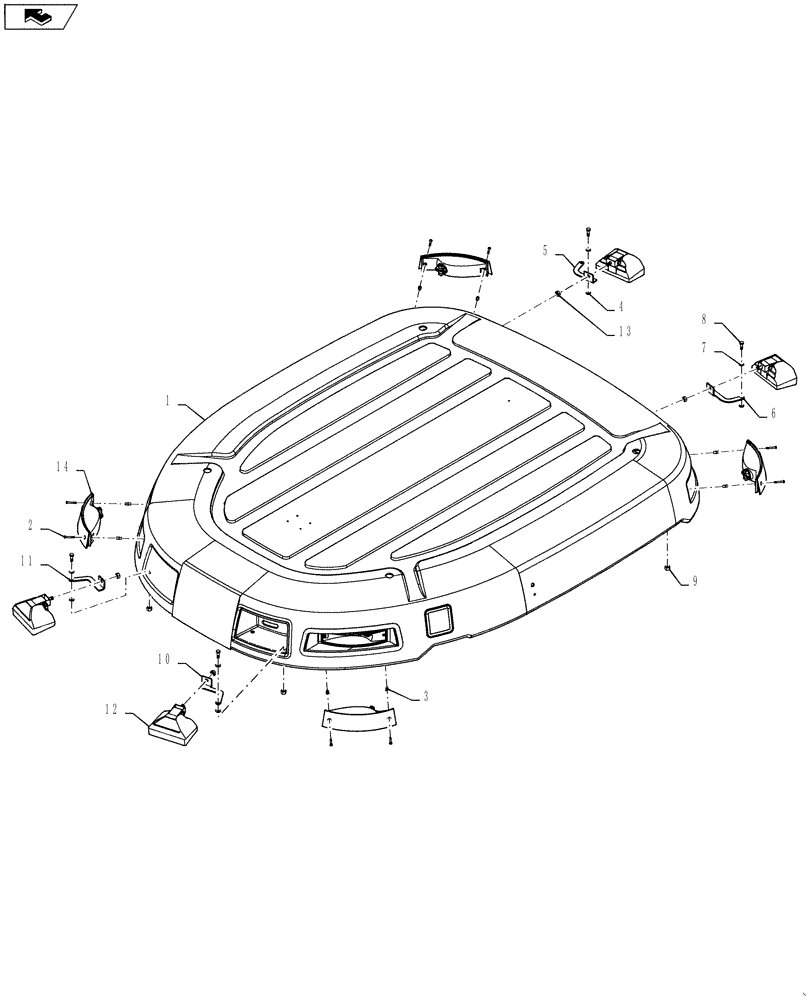

Запчасти Case IH 4420 (02-006) - ROOF/A, CAB Cab Exterior

1

84130912

ROOF

Cab

1шт.

2

87343613

SCREW,Phil Pan Hd, M5 x 35mm, Cl 4.8, Full Thd

M5 X 35 PHD H 4.8

8шт.

3

451165A1

THREADED INSERT

Knurled Open

8шт.

4

355532A1

WASHER

NYLON

4шт.

5

353563A1

BRACKET

rear right

1шт.

6

353562A1

BRACKET

rear left

1шт.

7

895-10008

WASHER,M8 x 16 x 1.6

4шт.

8

87342022

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

9

86528579

NUT,M8 x 1.25

4шт.

10

353560A1

BRACKET

left front

1шт.

11

353561A1

BRACKET

front right

1шт.

12

92269C1

WORK LAMP,Halogen, 12V, 55W, Clear

Flood, 80 x 30W, Halogen

4шт.

13

86500689

NUT,M10 x 1.5, Cl 10

4шт.

14

320246A1

LAMP

Hazard, LF, RR

4шт.

15

84195649

RUBBER SEAL

Cab Roof Seal, Not Shown

2шт.
