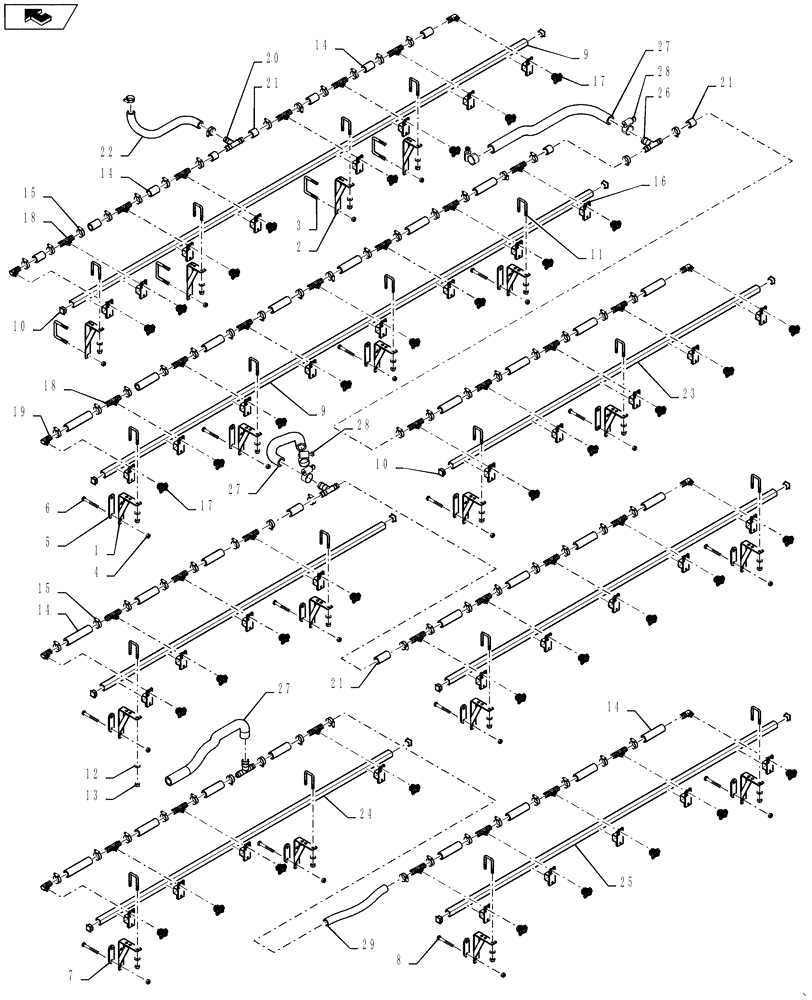

Запчасти Case IH 4420 (09-042) - PLUMBING, SPRAY NOZZLE MOUNTING, 7 SECTION, LO-FLOW Liquid Plumbing

1

87550651

MOUNTING PARTS

SPRAYBAR

28шт.

2

87586920

MOUNTING PARTS

Spraybar, Center Section

4шт.

3

87586548

U-BOLT

Square, M10 x 64 mm id x 64

4шт.

4

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

64шт.

5

87632103

PLATE

Backer, 3" Tube

12шт.

6

86980410

BOLT,Hex, M10 x 100mm, Cl 8.8

M10 1.5 X 100, 8.8, DOR

24шт.

7

BN308039

PLATE

Spacer

16шт.

8

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

32шт.

9

87663139

TUBE,3620 mm L

nozzle mount, 8 nozzles

3шт.

10

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

26шт.

11

BN23149

U-BOLT

1/4"-20, Square, 1.1" id x 2" Long

32шт.

12

BN50138

WASHER,1/4", SS

64шт.

13

BN55359

LOCK NUT,1/4"-20, SS

64шт.

14

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

56шт.

15

BN310466

FIP KIT

CLAMP, HOSE, #12, 304 SS, ABA STYLE

146шт.

16

87268381

KIT,3/4" Sq

mount, 3/4" sq. x 1" sq.

72шт.

17

87268382

ADAPTER,SQ. Mount Adapter

combo clip, F x 3/8 nptf

72шт.

18

87268383

FITTING,Hose Shank Adapter-3/4" Two Way

Tee, .75HB .75HB .38MP

58шт.

19

87268384

FITTING,Hose Shank Adapter-3/4" One Way

Elbow, 90º, .38MP .75HB

14шт.

20

BN317236

TEE

3/4” x 3/4” x 3/4” HB

1шт.

21

BN53862

EPDM 3/4” ID X 8.5”

14шт.

22

BN27905

HOSE,19.05mm ID x 304.8mm L

EPDM 3/4" ID x 12"

1.3шт.

23

87664116

TUBE,2604 mm L

NOZZLE MOUNT, 6 NOZ

2шт.

24

87664117

TUBE,1589 mm L

NOZZLE MOUNT, 4 NOZ

4шт.

25

87664149

TUBE,2096 mm L

NOZZLE MOUNT, 5 NOZ

4шт.

26

87664074

FITTING,3/4" x 3/4" x 1" Hose Barb Tee

.75 HB x .75 HB x 1.0 HB, Poly

6шт.

27

BN53479

HOSE,1.00" ID BULK

EPDM Discharge

10шт.

28

BN75990

HOSE CLAMP

#16, 304 SS, ABA Style

12шт.

29

BN53857

HOSE,0.75" ID x 26.00"

Flexible

2шт.
