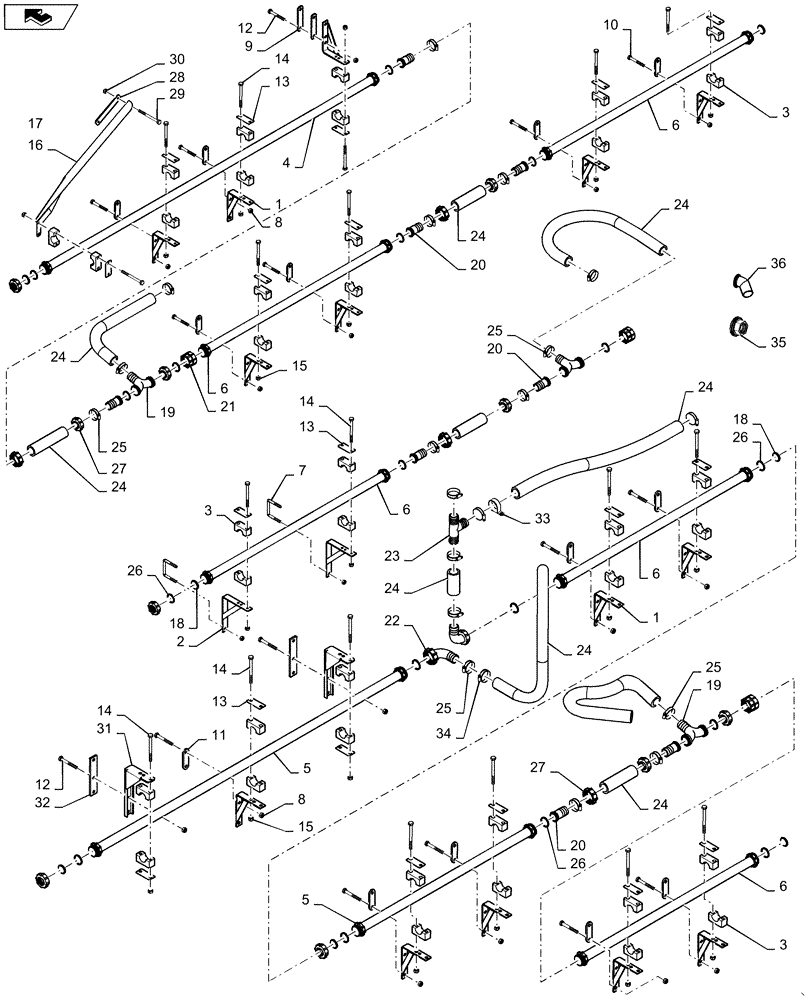

Запчасти Case IH 4420 (09-041) - SPRAYBAR PLUMBING, LH, TWS, 20" OFFSET, 120’ BOOM Liquid Plumbing

1

87484196

MOUNTING PARTS

Spraybar

28шт.

2

84174978

MOUNTING PARTS

Spraybar, Center Section, Start Year: 01-JUN-09

4шт.

2

87586920

MOUNTING PARTS

Spraybar, Center Section, Years: -01-JUN-09

4шт.

3

BN67054

CLAMP

1.315" OD

38шт.

4

87671762

BOOM,106" Long, 6 Holes, 20" Nozzle Spacing

Spraybar, 6 Nozzles, 20" Nozzle Spacing, 106" Long

2шт.

Includes two 87630104, two 87630103, and two 87630105

1шт.

5

87671763

BOOM,85" Long, 5 Holes, 20" Nozzle Spacing

Spraybar, 5 Nozzles, 20" Nozzle Spacing, 85" Long

4шт.

Includes two 87630104, two 87630103, and two 87630105

1шт.

6

87671764

BOOM,64-1/2" Long, 4 Holes, 20" Nozzle Spacing

Spraybar, 4 Nozzles, 20" Nozzle Spacing, 65" Long

10шт.

Includes two 87630104, two 87630103, and two 87630105

1шт.

6

87630105

NUT

Nut, Quick, Spraybar, 1" TWS, Poly

2шт.

6

87630104

FITTING,TWS Male End Adapter Assy - 1.315" Tube

Split Sleeve, Spraybar, Poly

2шт.

6

87630103

FITTING

Binding Ring, Spraybar, Poly

2шт.

7

87586548

U-BOLT

Square, M10 x 64 mm id x 64

4шт.

8

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

76шт.

9

87484194

PLATE

Backer, Spraybar Mount

16шт.

10

86980410

BOLT,Hex, M10 x 100mm, Cl 8.8

M10 1.5 X 100, 8.8, DOR

24шт.

11

BN308039

PLATE

Spacer

14шт.

12

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

44шт.

13

BN309483

PLATE

Clamp Top, Single Clamp

38шт.

14

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

76шт.

15

BN55359

LOCK NUT,1/4"-20, SS

76шт.

16

87672998

MOUNT

Spraybar, Extended, LH

1шт.

17

87672999

MOUNT

Spraybar, Extended, RH

1шт.

18

87630099

PLUG,1" SST

Flange Cap For Spraybar, Poly

14шт.

19

87630101

FITTING,Tee, PP

1-1/4" MPT x 1-1/4" MPT x 1-1/4 Hose Barb, Poly

5шт.

20

87630096

FITTING,QN Hose Shank - 1" SST X 1 1/4" Straight Shank

Straight, 1" Flange x 1-1/4" Hose Barb, Poly

14шт.

21

87630102

FITTING,Adapter Coupler Body - TWS X 1 1/4" NPT FE

Coupling, Spraybar End x 1-1/4" Female NPT, With O-Ring Flange, Poly

5шт.

22

87630097

FITTING,QN Hose Shank - 1" SST x 1 1/4" Sweep 90 Degree

Elbow, 1" Flange x 1-1/4" Hose Barb, Poly

4шт.

23

BN317579

TEE

Hose Barb, 1 1/4"

2шт.

24

BN29563

HOSE

Bulk 1.25" EPDM, Discharge

34шт.

25

BN320156

HOSE CLAMP

#24, Stainless Steel

36шт.

26

84181302

SEALING RING

SEALRING Rectangular, 1 5/16" x 1 9/16" Class 5

42шт.

27

87638736

FITTING,QN 1" - Nut

Nut, Quick, 1-1/4" NPT, Poly

5шт.

28

87673096

STRAP

Backer, 4 1/2” Tube

2шт.

29

86980370

BOLT,Hex, M6 x 90mm, Cl 8.8

M6-1 X 90, 8.8, DOR

4шт.

30

353308

NUT,M6 x 1.0, Cl 8

4шт.

31

87707089

BRACKET, SUPPORTING

Spraybar

4шт.

32

87707554

BRACKET, SUPPORTING

Backer, Spraybar

4шт.

33

515-23508

CLAMP,2", Insul, 3/8" Bolt

2шт.

34

BN310448

HOSE CLAMP

#28, Stainless Steel

2шт.

35

87630100

REDUCER FITTING,QN 1" SST x 3/4" NPT FE Adapter

1шт.

36

87630098

45 ELBOW,QN Hose Shank - 1" SST x 1 1/4" Sweep 45 Degree

1шт.
