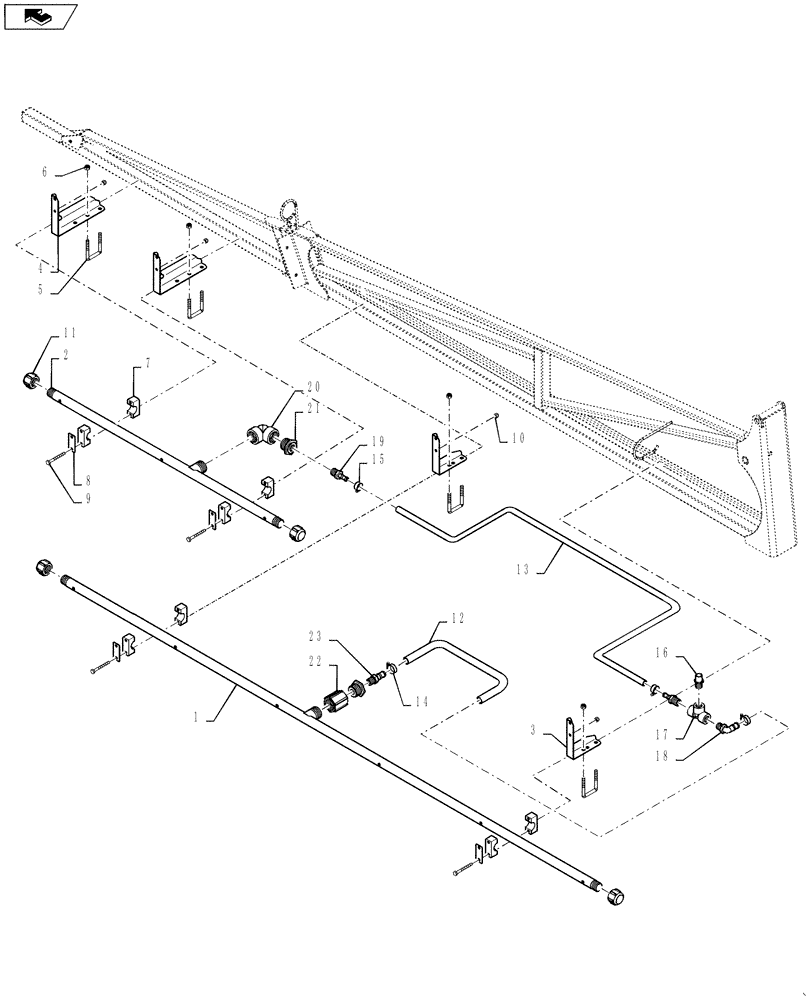

Запчасти Case IH 4420 (09-039) - SPRAYBAR, OUTER, 20" OFF, 6 SECTION, LO-FLOW Liquid Plumbing

1

87266668

PIPE,105" Long, 6 Holes, 20" Nozzle Spacing

Spraybar, 6 Nozzles, 20" Nozzle Spacing, Stainless Steel, 105" Long

1шт.

2

87266669

PIPE,45" Long, 3 Holes, 20" Nozzle Spacing

Spraybar, 3 Nozzles, 20" Nozzle Spacing, Stainless Steel, 45" Long

1шт.

3

BN323957

BRACKET

Spraybar Mount

2шт.

4

87562807

BRACKET, SUPPORTING

Mount, Spraybar

2шт.

5

BN319919

U-BOLT

2.06 ID x 2-3/4 x 3/8

4шт.

6

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

7

BN67054

CLAMP

1.315" OD

4шт.

8

BN309483

PLATE

Clamp Top, Single Clamp

4шт.

9

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

8шт.

10

BN55359

LOCK NUT,1/4"-20, SS

8шт.

11

BN73606

CAP

1" NPT, Poly Pipe

4шт.

12

BN27905

HOSE,19.05mm ID x 304.8mm L

EPDM 3/4" ID x 12"

1шт.

Cut 22" from bulk roll

1шт.

13

BN54239

HOSE,12.7mm ID x 3048mm L

Black-1/2 EPDM, Discharge

1шт.

Cut 91" from bulk roll

1шт.

14

BN310446

HOSE CLAMP

#12, Stainless Steel

2шт.

15

BN324022

HOSE CLAMP

#8, Stainless Steel

2шт.

16

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

1шт.

17

BN73560

TEE

3/4" NPT, Poly

1шт.

18

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

1шт.

19

BN73568

FITTING

3/4" NPT x 1/2" Hose Barb, Poly

2шт.

20

BN313202

ELBOW

1-1/4" NPT, 90°, Poly

1шт.

21

BN73653

BUSHING,1-1/4" Male NPT x 3/4" Female NPT, Poly

Reducer, 1-1/4" MPT x 3/4" FPT, Poly

2шт.

22

BN305269

COUPLING

1-1/4" NPT, Poly

1шт.

23

BN73561

FITTING

3/4" NPT x 3/4" Hose Barb, Poly

1шт.
